Swivel Head Innerduct Pulling Eyes Tool
Swivel Head Innerduct Pulling Eyes Tool
SKU:PUL-283ce8
Revolutionize innerduct installation with the Swivel Head Pulling Eyes Tool. Prevent twisting and binding, streamline installation, and ensure a precise fit. Easy to use with a compact design.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
Swivel Head Innerduct Pulling Eyes Tool
$34.99
Quantity: 1
Claim Your Seller Account
Swivel Head Innerduct Pulling Eyes Tool
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

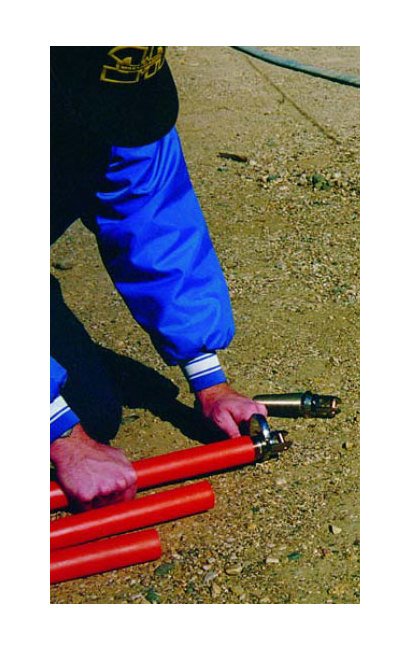

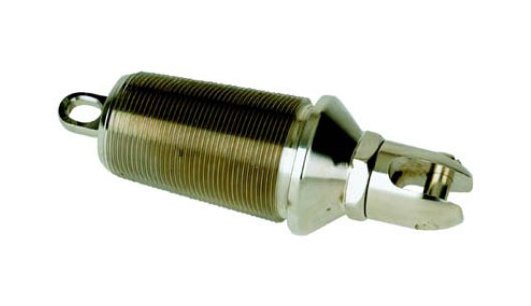

The Swivel Head Innerduct Pulling Eyes Tool revolutionizes innerduct installation with its innovative design. Combining the functionalities of standard innerduct pulling eyes and swivels, this tool features a swivel head that effectively prevents twisting and binding during installation. Say goodbye to the hassle of using separate swivels on each pulling eye when working with single or multiple innerducts. Its compact size makes it ideal for navigating tight bends. Installation is a breeze with a 1-3/8" deep socket or adjustable wrench. Ensure precise fit by selecting the correct size based on your innerduct's I.D. measurements.

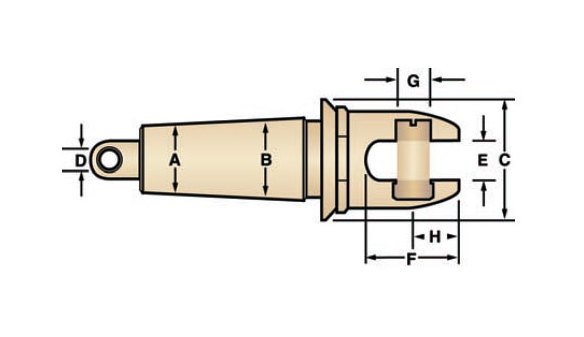

Product Specifications
Specifications Hole Diameter D In
0.44
Specifications Hole Diameter D Mm
11
Specifications Innerduct Id Range A To B In
1.37 to 1.68
Specifications Innerduct Id Range A To B Mm
35 to 43
Specifications Max Od C In
2.00
Specifications Max Od C Mm
51
Specifications Nom Size In
1-1/2
Specifications Nom Size Mm
38
Specifications Note
Will fit all Condux multiple pulling harnesses.
Specifications Pin Center H In
0.56
Specifications Pin Center H Mm
14
Specifications Pin Diameter G In
0.44
Specifications Pin Diameter G Mm
11
Specifications Slot Depth F In
1.31
Specifications Slot Depth F Mm
33
Specifications Slot Width E In
0.56
Specifications Slot Width E Mm
14
