Swivel & Non-Swivel Hook Socket Fitting Combo

Name: Swivel & Non-Swivel Hook Socket Fitting Combo
Brand: Lexco Cable Manufacturing
SKU: ARC-2cd688
Price: 49.99 USD
Availability: OutOfStock

SKU:ARC-2cd688

Durable and secure Non-Bearing Swivel & Non-Swivel Hook Socket Fitting for cable railings. IPS Breaking Strength: 13,120#. Safety Latch Kits included.

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Upgrade your cable railings with our premium Non-Bearing Swivel and Non-Swivel Hook Socket Fitting. Crafted from durable Non-Swivel Zinc Plated Steel, these fittings ensure secure wire rope installations. With a 13,120# IPS Breaking Strength, Safety Latch Kits for added security, and compliance with industry standards, trust in the reliability of our fittings for your architectural projects.

Product Specifications

Additional Information About Breaking Strength 0

Rope fittings are designed for linear applications only. Never subject Electroline rope fittings to angular loads. Follow rope manufacturersâ recommendations regarding the suitability of the rope on angled surfaces such as sheaves and pulleys.The strength of an assembly greatly depends on the type of rope used. When using Electroline terminations in an assembly, the rope is often the weakest component. Therefore, it is important to follow the rope manufacturers specifications regarding use, care, and suitability of the assembly. Electroline terminations should be inspected for deformation and unusual wear every time the rope is inspected.The rated assembly breaking strengths provided with Electroline wire rope part numbers in this catalog are typical for 6 x 19 IWRC (1 x 19 IWRC in smaller sizes) carbon steel ropes. Due to customer demand regarding dimensions, forged studs (GD 300 series), open body turnbuckles (XD series), fittings with hooks, and machined eyes (ID 200 series) are rated to Improved Plow Steel (IPS) standards. These fittings can be modified to Extra Improved Plow Steel (EIPS) standards if requested. All other carbon steel fittings conform to EIPS standards.Stainless steel typically yields at 85% of the assembly breaking strengths listed in this catalog and may not be suitable for high load applications or re-termination purposes.Machined fittings are at least 1.3 times stronger than the corresponding steel rope. Forged fittings, except studs, are 2.0 times stronger. Items specified as hot-dipped galvanized include a zinc, electro-plated sleeve.

Safety Latch Kits Safety Latch Kits

L-227B, S - Safety Latch Kit | L-490B, SS - Safety Latch Kit

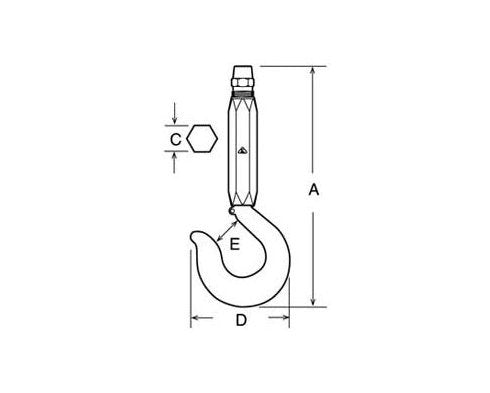

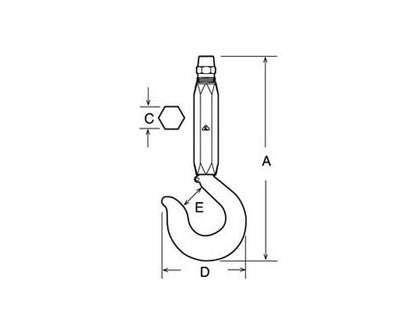

Specifications Dim C

1-1/8 "

Specifications Dim D

4-3/32 "

Specifications Dim E

1-1/4 "

Specifications Ips Breaking Strength

13,120#

Specifications Material Finish

Non-Swivel Zinc Plated Steel

Specifications Non Swivel A

7-19/32 "

Specifications Rope Size

3/8 "

Specifications Swivel A

9-5/16 "

CAGE

0T9L4

NAICS

332999

PSC

5340

Swivel & Non-Swivel Hook Socket Fitting Combo
