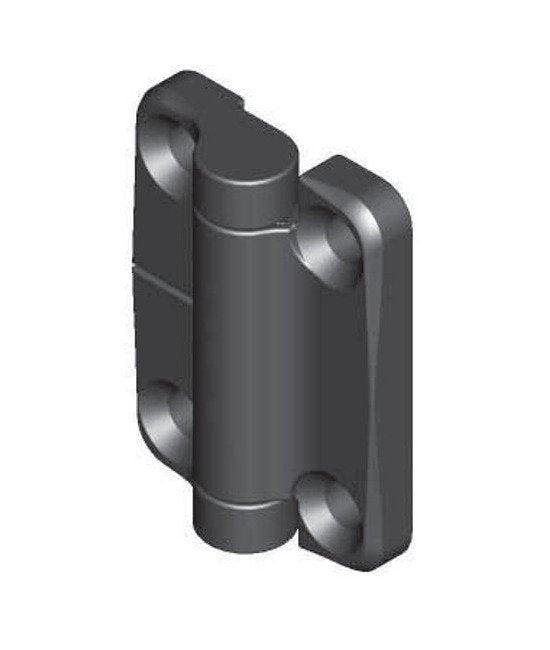

Symmetric Torque Friction Hinge - 1.8 N.m, Black Powder Coated Finish
Symmetric Torque Friction Hinge - 1.8 N.m, Black Powder Coated Finish
SKU:IND-51754c
Precision hinging with 1.8 N·m Symmetric Torque, durable black powder coat finish for industrial panels.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Symmetric Torque Friction Hinge - 1.8 N.m, Black Powder Coated Finish
$24.99
Quantity: 1
Claim Your Seller Account
Symmetric Torque Friction Hinge - 1.8 N.m, Black Powder Coated Finish
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance panel hinging with the Symmetric Torque Friction Hinge featuring a precise 1.8 N·m to Open and Close to ensure controlled motion. Crafted from Die Cast Zinc with Stainless Steel Hinge Pin for durability. Black Powder Coated for a sleek finish. Special feature: Maintains torque within 20% after 25,000 cycles, ideal for industrial applications.
Product Specifications
Specifications Hinge Leaves Material
Die Cast Zinc
Specifications Hinge Pin Material
Stainless Steel (SS)
Specifications Metal Hinge With Constant Friction
Symmetric Torque
Specifications Mounting
Screw
Specifications Special Features
Life: Within 20 Percent of stated torque after 25,000 cycles.
Specifications Surface Finish
Black Powder Coated
Specifications Torque To Close
1.8 N·m | 16.0 in·lb
Specifications Torque To Open
1.8 N·m | 16.0 in·lb
