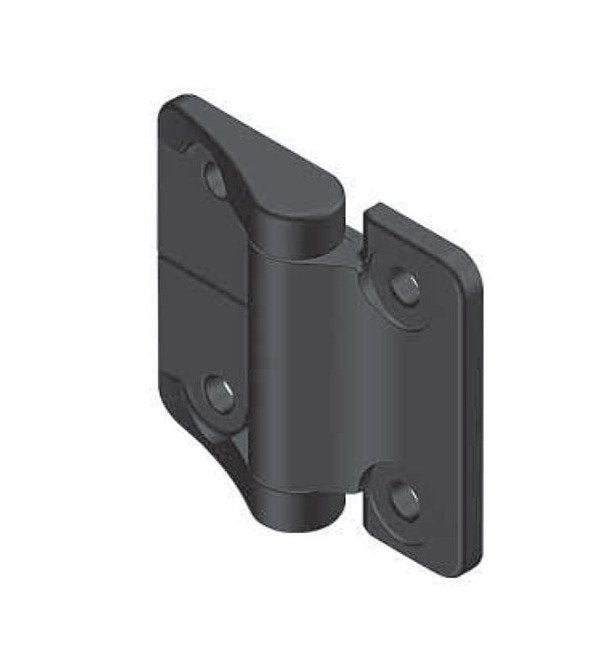

Symmetric Torque Friction Hinge - Black Powder Coated Finish
Symmetric Torque Friction Hinge - Black Powder Coated Finish
SKU:IND-1c10a8
Upgrade panel hinging with the 3.4 N·m Symmetric Torque Friction Hinge featuring Black Powder Coated Finish. Perfect for industrial use.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Symmetric Torque Friction Hinge - Black Powder Coated Finish
$29.99
Quantity: 1
Claim Your Seller Account
Symmetric Torque Friction Hinge - Black Powder Coated Finish
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your panel hinging with the 3.4 N·m Symmetric Torque Friction Hinge. Built with Die Cast Zinc Hinge Leaves, Stainless Steel Hinge Pin, and enduring Black Powder Coated Surface Finish, this hinge ensures smooth operation. With a torque to open and close of 3.4 N·m, it maintains consistent performance over 25,000 cycles. Ideal for industrial applications requiring precision and durability.
Product Specifications
Specifications Hinge Leaves Material
Die Cast Zinc
Specifications Hinge Pin Material
Stainless Steel (SS)
Specifications Metal Hinge With Constant Friction
Symmetric Torque
Specifications Mounting
Screw
Specifications Special Features
Life: Within 20 Percent of stated torque after 25,000 cycles.
Specifications Surface Finish
Black Powder Coated
Specifications Torque To Close
3.4 N·m | 30.1 in·lb
Specifications Torque To Open
3.4 N·m | 30.1 in·lb
