Symmetric Torque Friction Hinge - Natural Surface Finish
Symmetric Torque Friction Hinge - Natural Surface Finish
SKU:IND-529cc2
Symmetric Torque Friction Hinge for industrial panel hinging, with 3.4 N·m torque and durable construction.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Symmetric Torque Friction Hinge - Natural Surface Finish
$29.99
Quantity: 1
Claim Your Seller Account
Symmetric Torque Friction Hinge - Natural Surface Finish
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

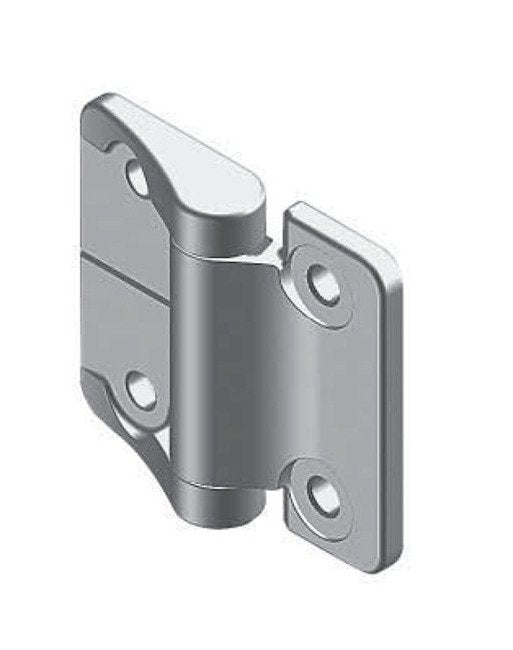

The Symmetric Torque Friction Hinge with a 3.4 N·m to Open and Close capability is a robust solution for hinging panels in industrial settings. Manufactured with Die Cast Zinc Hinge Leaves and Stainless Steel Hinge Pin, this durable hinge ensures reliable operation over 25,000 cycles. The natural surface finish enhances its aesthetic appeal while maintaining a constant friction for secure panel positioning. Ideal for applications requiring precise torque control and long-term performance.

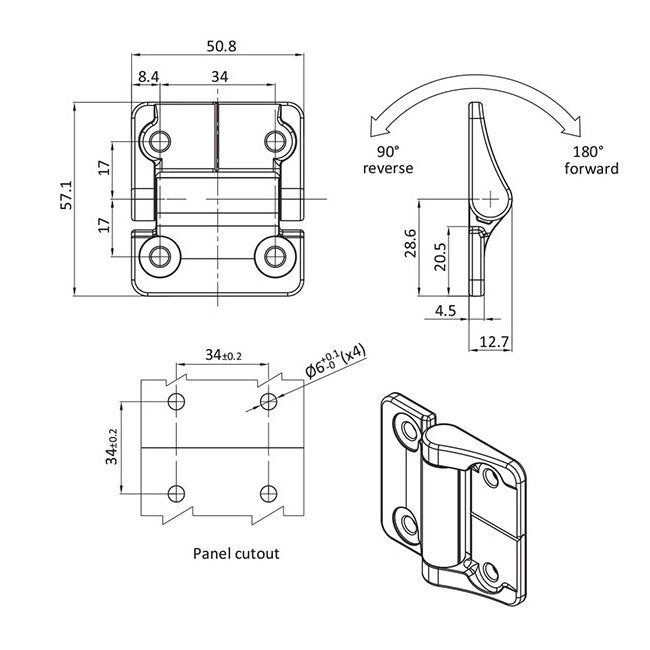

Product Specifications
Specifications Hinge Leaves Material
Die Cast Zinc
Specifications Hinge Pin Material
Stainless Steel (SS)
Specifications Metal Hinge With Constant Friction
Symmetric Torque
Specifications Mounting
Screw
Specifications Special Features
Life: Within 20 Percent of stated torque after 25,000 cycles.
Specifications Surface Finish
Natural
Specifications Torque To Close
3.4 N·m | 30.1 in·lb
Specifications Torque To Open
3.4 N·m | 30.1 in·lb
