Symmetric Torque Friction Hinge with 2.3 N.m Torque - Black Powder Coated Finish
Symmetric Torque Friction Hinge with 2.3 N.m Torque - Black Powder Coated Finish
SKU:IND-567ce6
Precision hinging with 2.3 N.m torque, durable construction, and black powder-coated finish.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Symmetric Torque Friction Hinge with 2.3 N.m Torque - Black Powder Coated Finish
$29.99
Quantity: 1
Claim Your Seller Account
Symmetric Torque Friction Hinge with 2.3 N.m Torque - Black Powder Coated Finish
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

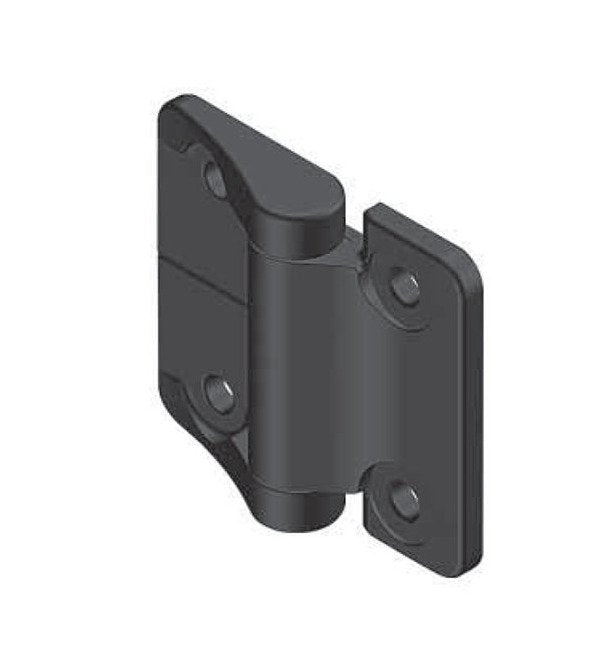

Experience seamless panel hinging with the All Electronics Hardware Symmetric Torque Friction Hinge. This metal hinge features a constant torque of 2.3 N·m for both opening and closing operations, ensuring precision and reliability. Crafted with Die Cast Zinc hinge leaves and a Stainless Steel hinge pin, it boasts durability and strength. The black powder-coated surface finish enhances its aesthetics and longevity. With a special feature of maintaining torque within 20% after 25,000 cycles, this hinge is engineered for lasting performance in industrial settings.
Product Specifications
Specifications Hinge Leaves Material
Die Cast Zinc
Specifications Hinge Pin Material
Stainless Steel (SS)
Specifications Metal Hinge With Constant Friction
Symmetric Torque
Specifications Mounting
Screw
Specifications Special Features
Life: Within 20 Percent of stated torque after 25,000 cycles.
Specifications Surface Finish
Black Powder Coated
Specifications Torque To Close
2.3 N·m | 20.4 in·lb
Specifications Torque To Open
2.3 N·m | 20.4 in·lb
