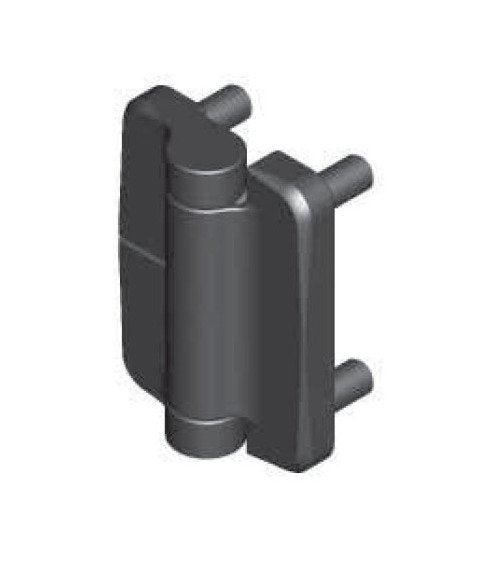

Symmetric Torque Friction Hinge with Constant Friction - 2.3 N·m
Symmetric Torque Friction Hinge with Constant Friction - 2.3 N·m
SKU:IND-bd5150
Enhance panel functionality with our 2.3 N·m Symmetric Torque Friction Hinge - ideal for industrial applications.
Regular price
$24.99
Regular price
Sale price
$24.99
Unit price
per
Initiate Order
Symmetric Torque Friction Hinge with Constant Friction - 2.3 N·m
$24.99
Quantity: 1
Claim Your Seller Account
Symmetric Torque Friction Hinge with Constant Friction - 2.3 N·m
$24.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance panel functionality with the Symmetric Torque Friction Hinge. Constructed with die-cast zinc material and a black powder-coated finish, this hinge offers a constant torque of 2.3 N·m to open and close smoothly. Its special feature ensures longevity, maintaining torque levels within 20% after 25,000 cycles. Ideal for industrial applications requiring reliable and precise torque control.
Product Specifications
Specifications Hinge Leaves Material
Die Cast Zinc
Specifications Metal Hinge With Constant Friction
Symmetric Torque
Specifications Special Features
Life: Within 20 Percent of stated torque after 25,000 cycles.
Specifications Surface Finish
Black Powder Coated
Specifications Torque To Close
2.3 N·m | 20.4 in·lb
Specifications Torque To Open
2.3 N·m | 20.4 in·lb
