Syntegon B-550M Medical Grade Band Sealers
Syntegon B-550M Medical Grade Band Sealers
SKU:MAC-803a49
Syntegon B-550M Band Sealers: Precision performance for sterile packaging in medical environments.
Regular price
$12,599.99
Regular price
Sale price
$12,599.99
Unit price
per
Initiate Order
Syntegon B-550M Medical Grade Band Sealers
$12,599.99
Quantity: 1
Claim Your Seller Account
Syntegon B-550M Medical Grade Band Sealers
$12,599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

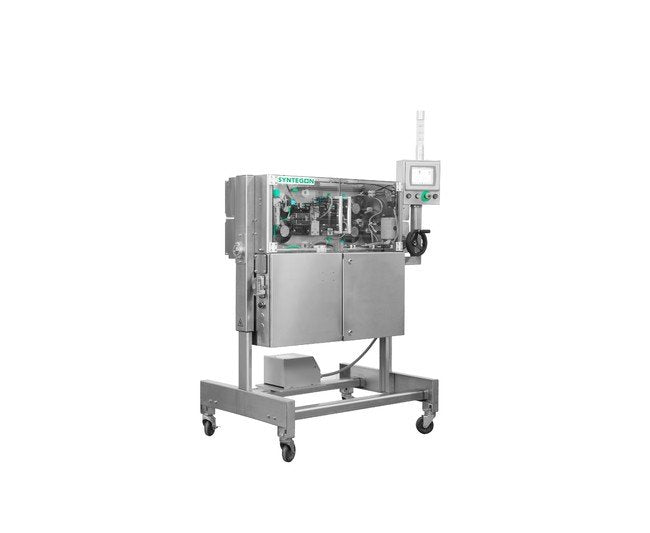

The Syntegon B-550M Medical Grade Continuous Band Sealers are designed for medical and clean-room environments, offering precision control and quality sealing for sterile barrier systems. With features like digital speed control, precision temperature controllers, adjustable pressure, and touchscreen interface for enhanced security, this band sealer ensures repeatability and accuracy essential for medical pouches and other sterile packaging. It meets FDA validation requirements and comes with Installation Qualification (IQ), Operational Qualification (OQ), and Performance Qualification (PQ) support, making it a reliable choice for institutions seeking compliance and operational excellence in packaging.
Product Specifications
Additional Information Additional Information
Quality. Accuracy. RepeatabilityPrecision Control for a Precise ProcessDesigned to meet FDA validation requirements, the B-550M medical sealer regulates, monitors and displays temperature, pressure and speed. The result is a secure, error free seal essential for medical pouches and other sterile packaging.Validating the B-550MTerminally sterilized medical device packaging is made easier with Syntegon Packaging Technology as a partner. Count on our experienced staff to help translate ISO 11607-2 requirements to help you develop a sterile barrier system.Installation Qualification (IQ)Each order includes a one day factory acceptance test (FAT) at our facility. Customer attendance is encouraged, but not required.The FAT will be used to demonstrate critical design specifications and verify function of the equipment.Operational Qualification (OQ)A machine set up sheet will be provided for each product outlining nominal settings for machine speed, heat bar temperature, and sealing pressure.The set up sheet can then be used to derive high and low settings for each critical parameter.Seals can be tested using our calibrated Instron® peel testing equipment to verify that quality targets are being met.Performance Qualification (PQ)The B-550M is supplied with a temperature verification port for each of the two sealing bars. These ports enable ongoing process checks without stopping production.The B-550M's PLC monitors machine speed, sealing pressure and heat bar temperature continuously to insure process reliability.Deviations from any validated set point result in a visual alarm and a reversing of the B-550Mâs direction of travel to clear potentially flawed seals. The sealer will continue to run in reverse until all parameters have been satisfied.
Electrical Frequency
60 Hz
Electrical Number Of Phase
1
Electrical Voltage
110 V
Features Features
The B-550M band sealer has the features you want when repeatability and quality are essential to your sterile barrier system.SpeedDigital speed control with speeds ranging from 100-1000 inches per minuteSpeed is monitored via a 500 position encoder for precise controlHigh and low speed alarm set points are established through the HMIVariable speed AC drive and motor for enhanced accuracy and durabilityTemperatureTwo precision digital temperature controllersControllers programmable with high and low set pointsControllers can be locked out for process securitySurface mounted thermocouples for temperature sensing near the contact point on the pouchTemperature ports allow for ongoing process checks without stopping productionPressureAir pressure is applied to the heat bars, compression wheels and cooling bars providing control of the complete sealing processPressure is adjustable via an analog dialAlarm for low pressureSealing bar gap can be mechanically adjusted to eliminate premature sealing band failureSecurityTouchscreen operator interface allows for two user levels with password protectionFault conditions are listed and date stamped

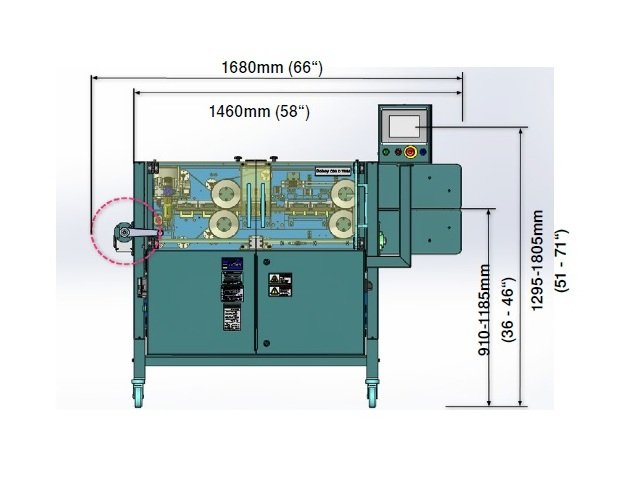

Machine Dimensions Horizontal Height Variable Floor To Belt
31 to 39 in
Machine Dimensions Horizontal Length
55.5 in
Machine Dimensions Horizontal Weight
310 lb
Machine Dimensions Horizontal Width
26.5 in

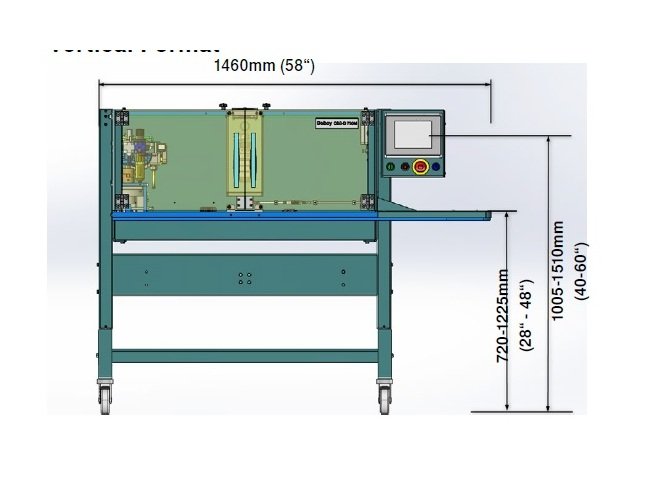

Machine Dimensions Vertical Height Variable Floor To Belt
28 to 45.5 in
Machine Dimensions Vertical Length
55.5 in
Machine Dimensions Vertical Weight
325 lb
Machine Dimensions Vertical Width
26 in
Options Options
Markem Touch Dry Ink CoderEmboss style coderBag top trimmerBag counterLight towerBag top guideHigh product detectionBand break detectionTapered infeedCasters9 mm or 12 mm seal width0.87" long x 10" wide width conveyors220 volt transformer
Outstanding Features Outstanding Features
Temperature ControlThe B-550M features Watlow⢠digital controllers with high and low set points combined with externally mounted thermocouples. The B-550M delivers precise control of the sealing process.Heating and Cooling BarsBoth the heating and cooling bars have a super hard (60 Rockwellâ¢) surface treatment that virtually eliminates wear. Both heating and cooling bars are pneumatically controlled to provide consistent pressure. Air pressure is electronically monitored to assure operation within specified parameters.Operator Interface/PLCThe heart of the B-550M is the integrated HMI/PLC. All sealing parameters are monitored and fault conditions are displayed. There is a screen for setting the machine speed and a screen for alarm history with date stamp. A digital screen for troubleshooting is also incorporated.Bag Top ControlFull length 12mm urethane timing belts grip the bag top and provide positive timing and speed control throughout the entire length of the sealer.AC Frequency Variable Speed DriveMachine speed can be adjusted from the control panel, with no belts or pulleys to adjust. In addition, the main drive is gear driven, so there are no chains or sprockets to wear out.Easy AccessibilityOpen frame design allows easy access for production and maintenance personnel. The B-550M has been designed to provide rapid band changes, with no tools required. Bands can be replaced in under two minutes!Sanitary ConstructionThe main frame components are constructed of stainless steel and aluminum anodized plates, QPQ Melonite and other sanitary materials. The durability of these materials allows the B-550M to meet the demanding requirements of sanitary and sterile applications.
Specifications Brand
Syntegon
Specifications Compression
Adjustable Pressure Roller
Specifications Cooling Bars
1 Pair of Air Cooled Bars
Specifications Equipment Grade
Medical
Specifications Heat Bars
1 Pair (7.5 in. Long)
Specifications Main Drive
AC Drive/Frequency Control
Specifications Production Speed
Up to 1000 in/min
Specifications Product Range
All heat sealable materials, tube style or gusseted
Specifications Sealing Bands
Glass Polytetrafluoroethylene (PTFE)
Specifications Standard Sealing Width
0.25 in
Specifications Temperature Control
One Precision Digital Control
Specifications Type
Band
