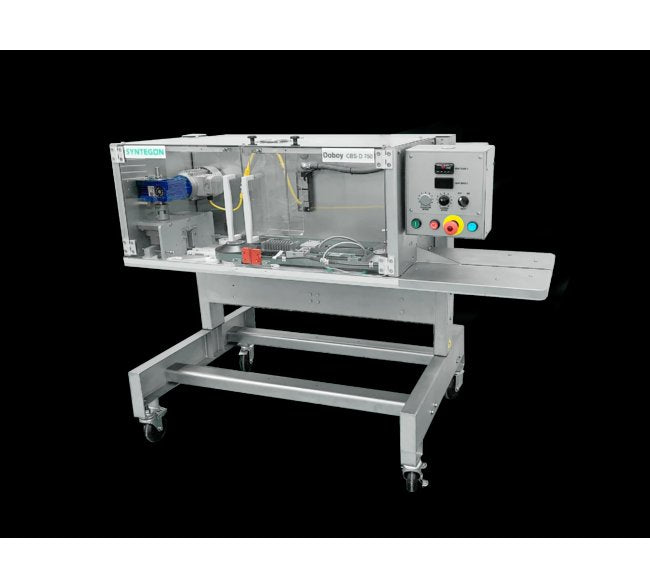

Syntegon Doboy B-550 Industrial Band Sealers
Syntegon Doboy B-550 Industrial Band Sealers
SKU:MAC-7a7392
Syntegon B-550 Industrial Band Sealers: Versatile, Efficient, Durable
Regular price
$7,999.99
Regular price
Sale price
$7,999.99
Unit price
per
Initiate Order
Syntegon Doboy B-550 Industrial Band Sealers
$7,999.99
Quantity: 1
Claim Your Seller Account
Syntegon Doboy B-550 Industrial Band Sealers
$7,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Syntegon Doboy B-550 Industrial Band Sealers offer industrial-grade performance and versatility at a cost-effective price point. With a production speed range of 100 to 1000 in/min, these sealers can handle all heat sealable materials in tube style or gusseted bags. Featuring glass PTFE sealing bands, precision digital temperature control, and adjustable compression, these sealers are built to deliver strong seals on various bag styles. The B-550's durable construction, operator-friendly controls, and quality components make it a reliable choice for diverse packaging applications.
Product Specifications
Electrical Frequency
60 Hz
Electrical Number Of Phase
1
Electrical Voltage
110 V
Features Features
QualityPerformanceValue
Industry Leading Features Industry Leading Features
Improved PerformanceThe B-550 heat bar length has been increased to 7.5 inches seal a wider range of bag materials at higher speeds. The heat bars have been designed to maximize heat transfer and minimize temperature deviation. The B-550 features compression wheels to provide strong seals on gusseted and difficult to seal films. Cooling bars are also standard and are designed for maximum efficiency to set seals for immediate handling.Bag Top ControlFull length, 1/2" wide, urethane timing belts grip the bag top and provide positive timing and speed control throughout the entire length of the sealer.Glass Polytetrafluoroethylene (PTFE) Sealing BandsFiberglass sealing bands provide superior seals and greatly reduce machine wear and maintenance.Operator FriendyAll controls and adjustments are easy to use and set-up. Sealing bands can be changed in less than a minute - without tools.AC DriveThe B-550 is our first mid-range sealer to feature the same drive system as our larger band sealers. This powerful and reliable combination features variable frequency speed control with a standard speed range of 100 to 1000 inches per minute. Bag speed is precisely controlled from the operator panel.Precision Temperature ControlThe heart of the B-550 temperature control system is a state-of the- art digital temperature controller. Mounted in the operator panel, the controller provides precise control of the heat bar temperature resulting in error-free seals.Built to lastLike other Doboy sealers before, the B-550 is truly an industrial quality sealer. Our machines are built for long service and high performance levels. The B-550 main frame is constructed of machine plate aluminum and features a rugged two post floorstand and polycarbonate guarding.
Machine Dimensions Horizontal Height Variable Floor To Belt
31 to 39 in
Machine Dimensions Horizontal Length
55.5 in
Machine Dimensions Horizontal Weight
310 lb
Machine Dimensions Horizontal Width
26.5 in
Machine Dimensions Vertical Height Variable Floor To Belt
28 to 45.5 in
Machine Dimensions Vertical Length
55.5 in
Machine Dimensions Vertical Weight
325 lb
Machine Dimensions Vertical Width
26 in
Options Options

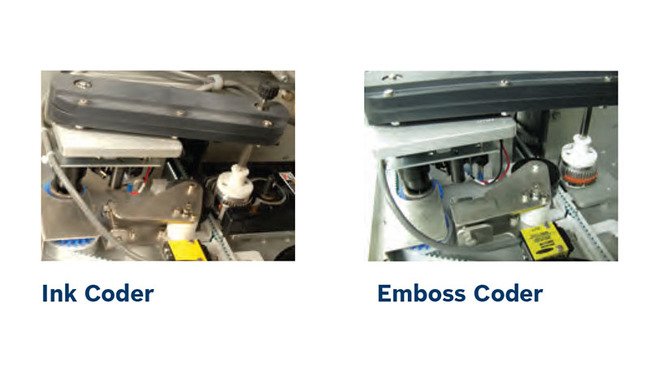

The B-550 is available in both vertical and horizontal versions and in two feed directions. A wide selection of options are available and include:Emboss or ink codersIntegrated conveyorsBag top trimmerBag counterStainless steel constructionRight to left or left to right feed directionCustom options, per application
Sealing Section Sealing Section
Heat Bars - One pair of 7.5" long precision machined aluminum heat bars produce a 1/4" seal width. The heat bars are spring loaded and are adjustable for different bag thicknesses. Ceramic insulators contain the heat within the heat bars.Compression Wheels - One pair of adjustable, spring loaded compression wheels create the pressure needed to seal gusseted bags with ease.Cooling Bars - One pair 5" long adjustable, cast aluminum, spring loaded cooling bars with stainless steel cover and blower fan to set seals for immediate handling.
Specifications Additional Information
The B-550 seals a wide range of bag styles for a variety of applications.
Specifications Brand
Syntegon
Specifications Compression
Adjustable Pressure Roller
Specifications Cooling Bars
1 Pair of Air Cooled Bars
Specifications Equipment Grade
Industrial
Specifications Heat Bars
1 Pair (7.5 in. Long)
Specifications Main Drive
AC Drive/Frequency Control
Specifications Production Speed
100 to 1000 in/min
Specifications Product Range
All heat sealable materials, tube style or gusseted
Specifications Sealing Bands
Glass Polytetrafluoroethylene (PTFE)
Specifications Standard Sealing Width
0.25 in
Specifications Temperature Control
One Precision Digital Control
Specifications Type
Band
Standard Machine Features Standard Machine Features
Bag Top ControlFull length, non-marking, 1/2" urethane carrier belts grip the bag top and transport it through the entire length of the sealer. Bags weighing less than two pounds do not require a support conveyor.Quality SealsThe B-550 is equipped with fully adjustable heat bars, compression section and cooling bars.Quality components provide quality seals.Safe, Easy AccessFront guard door with safety interlock, stops the machine when opened and provides access to the entire sealing section.Precision Temperature ControlPrecision digital temperature controller mounted on the operator panel. The heat bars reach temperature in minutes and maintain the set point resulting in error-free seals.Variable Speed DriveMain drive AC variable speed frequency drive and motor are accurate, dependable and maintenance free. Direct drive design means nothing to lubricate and no belts or chains to replace.Simple OperationAdjustable height floor stand with hand crank for easy operation. Two post, robust design is built to last in challenging environments.
