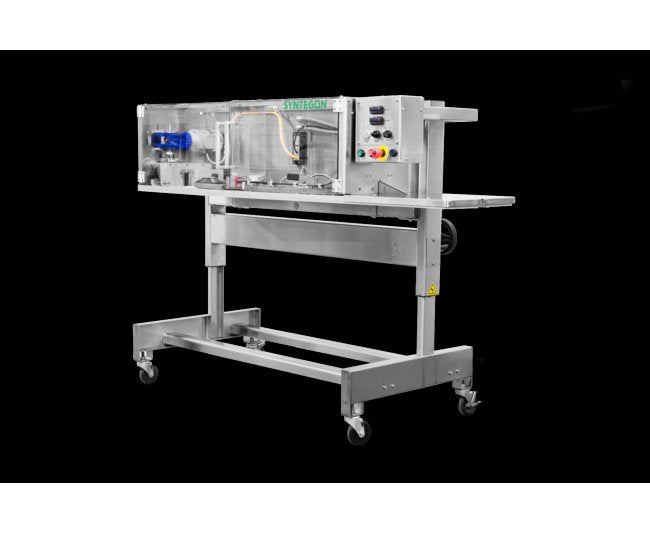

The Syntegon Doboy CBS-D Continuous Band Sealers are expertly designed to meet the demands of high-volume production facilities. Featuring innovative bag air evacuation technology for optimal secondary packaging density, these sealers offer precision sealing with Glass Polytetrafluoroethylene (PTFE) bands and adjustable heat bars. With AC Drive/Frequency Control, adjustable compression wheels, and easy-to-use controls, the CBS-D ensures efficient and reliable bag closing operations. Whether in vertical or horizontal configurations, this sealer provides versatile bag sealing solutions for various industries.
Product Specifications
Electrical Frequency
60 Hz
Electrical Industry Standards
National Electrical Manufacturers Association (NEMA 12)
Electrical Number Of Phase
1
Electrical Voltage
220 V
Features Features
Single point gap adjustment - Heating and cooling bars are mounted to a special indexing plate with a dial indicator readout to allow the bars' spacing from one central point. This eliminates the need to adjust the each bar individually, saving time and providing precision adjustments.Imbedded thermocouples - Thermocouples are contained within the heater cartridge to provide the most accurate method of sensing bar temperature. Two precision digital temperature controls accurately control sealing temperature.Meeting industry needs - All machines are wired to meet NEMA 12 standards and current industry codes. The control panel is configured for easy accessibility in and operating position. The CBS-D is available in a wide range of voltages and optional area classifications.Main frame - Main frame component are constructed from painted or stainless steel and aluminum plate. The floor stand is a tubular steel welded unit with a hand crank vertical height adjustment. Guards are sheet metal and Lexan. The CBS-D is built to last.Glass Polytetrafluoroethylene (PTFE) sealing bands - Provides better seals on gusseted bags and dramatic reduction in machine maintenance, heating and cooling bar wear. The CBS-D has been designed to provide rapid band changes, with no tools required. Bands can be replaced in under two minutes.Heating and cooling bars - Both the heating and cooling bars have super hard (60 Rockwellâ¢) surface treatment that eliminates wear. The bars have an exclusive over-travel limit to increase sealing and machine life. The air cooling manifold is more efficient for cooling capacity.AC frequency variable speed drive - Machine speed can be adjusted from the control panel, with no belts or pulleys to adjust. In addition, the main drive is gear driven, so there are no chains or sprockets to wear out.Bag top control - Full length, 12 mm wide, urethane timing belt securely grip the bag top and provide positive timing and speed control throughout the entire length of the sealer.Full length, non-marking, 12" urethane carrier belts grip the bag top and transport it through the entire length of the sealer. Bags weighing less than two pounds do not require a support conveyorQuick change sealing station - The entire sealing section can be removed in a matter of minutes for service or replacement, downtime is virtually eliminated.Quality seals - The CBS-D is equipped with fully adjustable heat bars, compression section and cooling bars. Quality components provide quality seals.Safe, easy access - Front guard door with safety interlock stops the machine when opened and provides access to the entire sealing section.Precision temperature control - Precision digital temperature controller mounted on the operator panel. The heat bars reach target temperature in minutes and maintain the set point resulting in error-free seals.Variable speed drive - Main drive AC variable speed frequency drive and motor are accurate, dependable and maintenance-free. Direct drive design means nothing to lubricate and no belts or chains to replace.Simple operation - Adjustable height floor stand with hand crank for easy operation. Two post, robust design is built to last in the challenging environment.

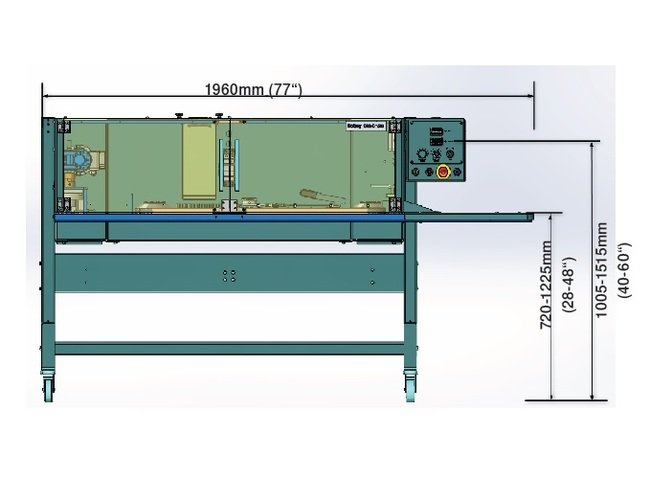

Horizontal Machine Size Horizontal Floor Belt Height Variable
32.5 to 40 in | 825.5 to 1016 mm
Horizontal Machine Size Horizontal Length
75 in | 1905 mm
Horizontal Machine Size Horizontal Weight
700 lb
Horizontal Machine Size Horizontal Width
26.6 in | 676 mm
Options Options
The CBS-D is available in both vertical and horizontal versions and in two feed directions. A wide selection of options are available and include:Emboss or ink codersIntegrated conveyorBag top trimmerBag counterStainless steel constructionRight to left or left to right feed directionAdditional temperature controllers9 - 19 mm seal width for hole-punchOption for slider bagEvacuation of bag airCustom options, per application
Sealing Section Compression Wheels
One pair of adjustable, spring-loaded compression wheels create the pressure needed to seal bags with ease.
Sealing Section Cooling Bars
One pair of 5 in. (130 mm) long air cooled cooling bars, spring loaded and adjustable.
Sealing Section Heat Bars
Two pair of 7.62 in. (190 mm) long for a total of 380 mm of sealing surface precision machined aluminum heat bars produce a 6 mm seal width (standard). The heatbars are spring loaded and are adjustable for different bag thicknesses. Ceramic insulators contain the heat within the heat bars.
Specifications Brand
Syntegon
Specifications Main Drive
AC Drive/Frequency Control
Specifications Production Speed
0 to 1200 in/min
Specifications Product Range
All heat sealable materials, tube style or gusseted
Specifications Sealing Bands
Glass Polytetrafluoroethylene (PTFE)
Specifications Standard Sealing Width
6 mm
Specifications Temperature Control
Two Precision Digital Controls

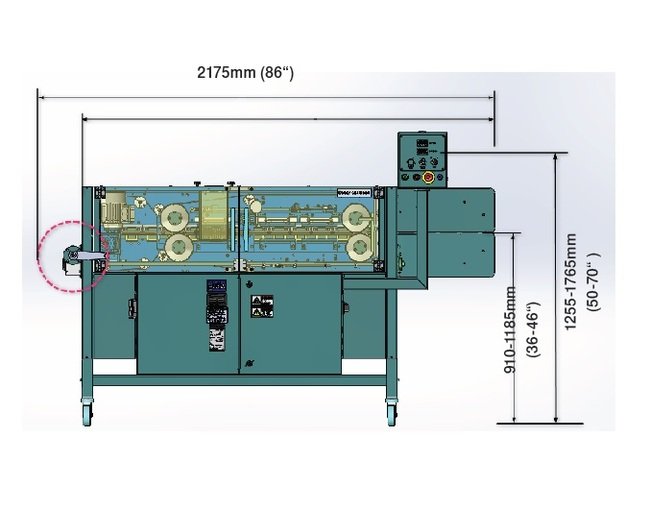

Vertical Machine Size Vertical Floor Belt Height Variable
57.2 to 71.2 in | 1450 to 1800 mm
Vertical Machine Size Vertical Length
75 in | 1905 mm
Vertical Machine Size Vertical Weight
700 lb
Vertical Machine Size Vertical Width
31.9 in | 810.26 mm
