Syntegon Doboy CBS-DM Medical Grade Continuous Band Sealers
Syntegon Doboy CBS-DM Medical Grade Continuous Band Sealers
SKU:MAC-fef194
Enhance medical packaging efficiency with Syntegon Doboy CBS-DM Continuous Band Sealers - precision, reliability, and compliance in one.
Regular price
$18,999.00
Regular price
Sale price
$18,999.00
Unit price
per
Initiate Order
Syntegon Doboy CBS-DM Medical Grade Continuous Band Sealers
$18,999.00
Quantity: 1
Claim Your Seller Account
Syntegon Doboy CBS-DM Medical Grade Continuous Band Sealers
$18,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

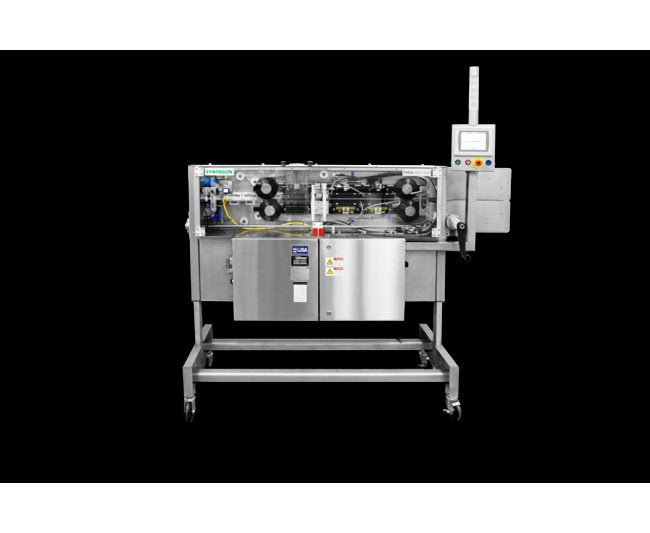

The Syntegon Doboy CBS-DM™ Medical Grade Continuous Band Sealers are engineered to meet the stringent requirements of medical sealing applications. Designed for sterile products, these sealers boast fully validatable controls, sanitary construction, and exceptional performance efficiency. Featuring precision digital controls, rapid band replacement, and AC frequency variable speed drive, they offer unparalleled sealing accuracy and reliability while minimizing maintenance. With compliance to NEMA 12 standards and suitability for cleanroom environments, the CBS-DM™ ensures a dependable and repeatable sealing solution for medical packaging needs.
Product Specifications
Available Options Available Options
Coders (Ink or Emboss)TrimmerCastersHorizontal Operation3/8" (9.5 mm) Seal WidthIntegrated Conveyors
Electrical Alternating Current Ac Voltage
220 V
Electrical Frequency
60 Hz
Electrical Industry Standards
National Electrical Manufacturers Association (NEMA 12)
Electrical Number Of Phase
1 | 3
Machine Dimensions Cooling Bars
1 Pair (Air or Water Cooled)

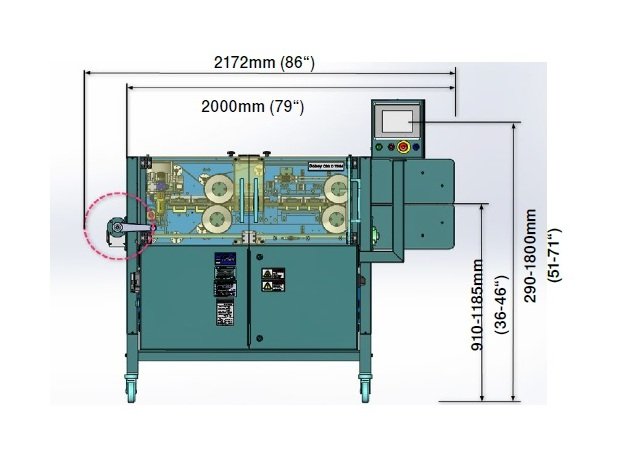

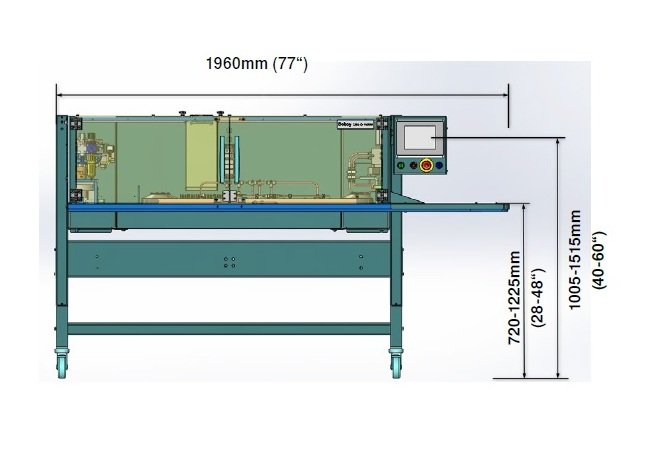

Machine Dimensions Height Variable
57.2 to 71.2 in | 1450 to 1800 mm
Machine Dimensions Length
77.4 in | 1965 mm
Machine Dimensions Machine Weight
700 lb | 320 kg
Machine Dimensions Main Drive
AC Frequency Variable Speed
Machine Dimensions Production Speed
Up to 1000 in/min
Machine Dimensions Product Range
All heat sealable pre-made bags, tube style or gusseted
Machine Dimensions Sealing Bands
Glass Polytetrafluoroethylene (PTFE)
Machine Dimensions Sealing Width
1/4 in
Machine Dimensions Temperature Control
Four Precision Digital Controls
Machine Dimensions Two Pair Heat Bar Size
15 in | 400 mm
Machine Dimensions Width
37 in | 940 mm
Note Note
Specifications subject to change without notice.
Outstanding Features Outstanding Features
Single Point Gap Adjustment - Heating and cooling bars are mounted to a special indexing plate to allow spacing of the bars from one central point. This eliminates the need to adjust each bar individually, saving time and providing precision adjustments.Bag Top Control - Full length 1/2" wide neoprene timing belt securely grips bag top and provides positive timing and speed control.Glass Polytetrafluoroethylene (PTFE) Sealing Bands - Provides better seals on gussetted bags and a dramatic reduction in machine maintenance and heating and cooling bar wear.AC Frequency Variable Speed Drive - Machine speed can be set from the operator panel with no belts or pulleys to adjust. A speed readout provides the operator with visual speed verification. Speeds are electronically monitored, any deviations will result in an alarm condition.Quick Change Sealing Section - The entire sealing section can be removed in a matter of minutes for servicing or replacement, downtime is virtually eliminated.Advanced Temperature Control - Four digital temperature controls are provided for precision control of each of the four heater bars. Thermocouples are imbedded within the heater cartridge to provide the most accurate method of sensing bar temperature. Temperature is electronically monitored to sense any deviations from set points.Main Frame - Main Frame components are constructed from stainless steel and aluminum plate. The floor stand is a tubular stainless steel welded unit with hand crank vertical height adjustment. Guards are stainless sheet metal and Lexanâ¢. Like previous models, the CBS-DM⢠is built to last.Heating and Cooling Bars - Both the heating and cooling bars have a super hard (60 Rockwellâ¢) surface treatment that virtually eliminates wear. Both heating and cooling bars are pneumatically controlled to provide consistent pressure. Air pressure is electronically monitored to assure operation within specified parameters. Air cooling is standard with water cooling available for heavy gauge materials.Quick Change Band Replacement - The CBS-DM⢠has been designed to provide rapid band changes, with no tools required. Bands can be replaced in under four minutes!Meeting Industry Needs - All machines are fully validatable and specifically designed for cleanroom environments. All alarms and deviation from established parameters are PLC controlled to provide accuracy, dependability and repeatability.
Specifications Brand
Syntegon
Specifications Type
Band
