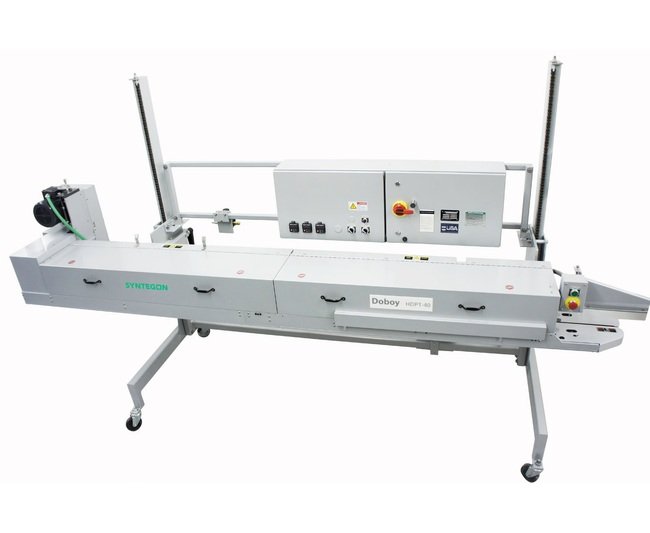

Syntegon Doboy HDPT™ 147.9" Bag Sealer
Syntegon Doboy HDPT™ 147.9" Bag Sealer
SKU:MAC-4279cd
Achieve ultimate bag closure with the Syntegon Doboy HDPT™ 147.9" Bag Sealer. Precision operation, strong pinch-style bag closure, and heavy-duty construction ensure product integrity and reliability.
Regular price
$23,999.00
Regular price
Sale price
$23,999.00
Unit price
per
Initiate Order
Syntegon Doboy HDPT™ 147.9" Bag Sealer
$23,999.00
Quantity: 1
Claim Your Seller Account
Syntegon Doboy HDPT™ 147.9" Bag Sealer
$23,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Syntegon Doboy HDPT™ 147.9" Bag Sealer is the ultimate solution for securing pinch bags with inner liners, ensuring unmatched product integrity. With precision operation controls for sealing various bag styles, including a strong closure for pinch bags, this sealer offers a sift-proof seal necessary for bulk and consumer products. Featuring an easy-to-adjust folder section, cast iron heat bars, and a heavy-duty construction, this sealer guarantees reliable performance and durability in demanding production environments.
Product Specifications
Electrical Frequency
60 Hz
Electrical Number Of Phase
3
Electrical Voltage
220 V
Features Features

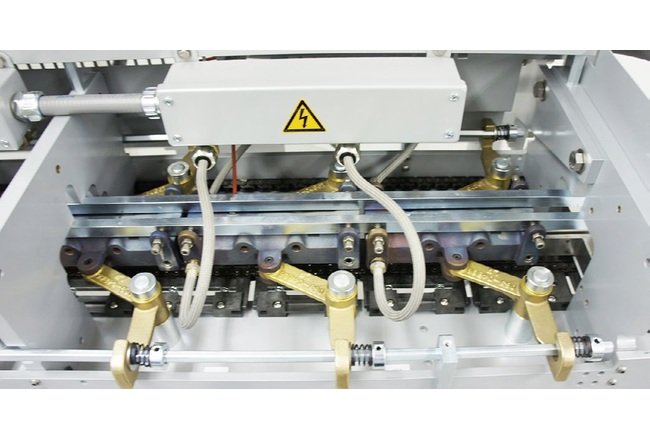

Easy to Use Precision Operation - Operating speeds, sealing temperatures, and air pressure can be individually controlled and regulated to seal and close a wide variety of bag styles.Sealer Closer - Provides a strong, sift-proof closure on pinch style bags required for a wide variety of bulk and consumer products.Folder Section - Extra long folder provides smooth, wrinkle-free folds, and is easy to adjust and clean.Cast Iron Heat Bars - Heat bars are spring loaded to provide full face contact. Bars are eight inches long for more efficient sealing on gusseted bags. Available in lengths of 40" or 56".Compression Section - Heavy-duty compression section handles even the toughest bags. Special belts provide long life and service.Bag Top Carrier Chain - Special flat face chains securely grip the bag top to provide precise sealing and folding.Air Safety Switch - The Air Safety Switch shuts down the power to the heating element if the air supply is interrupted.Digital Temperature Controls - Digital temperature controls provide precise and even temperature to heater bars and manifold.Heavy-Duty Construction - Open-top steel plate main frame and welded tube floor stand provide long life and dependability. The open top design allows easy access during routine maintenance.
Models Models
Three models are available to cover a wide variety of production demands.Standard 40" heat section model for normal production needs.56" heat section for high-speed or automatic bag lines.Specialty model for Cap Sac (bag within a bag) or similar style bags.
Options Options
Includes a bag top cleaning station, air operated "pop open" heat bars and air pressure controlled folder section for easy cleaning and removal of jammed or unevenly fed bags.
Specifications Applications
Bags
Specifications Brand
Syntegon
Technical Specifications Air Flow At 60 Pound Per Square Inch Ps
6 ft³/min
Technical Specifications Elevating Floor Range
22 to 58
Technical Specifications Height
75 in
Technical Specifications Length
147.9 in
Technical Specifications Speed
Up to 50 ft/min
Technical Specifications Width
32 in
