Syntegon Doboy S-CH-L Bag Sealer 154.5 Inch
Syntegon Doboy S-CH-L Bag Sealer 154.5 Inch
SKU:MAC-a74390
Experience high-speed, precision bag sealing with the Syntegon Doboy S-CH-L Bag Sealer, ensuring strong closures for coated woven polypropylene bags.
Regular price
$16,999.00
Regular price
Sale price
$16,999.00
Unit price
per
Initiate Order
Syntegon Doboy S-CH-L Bag Sealer 154.5 Inch
$16,999.00
Quantity: 1
Claim Your Seller Account
Syntegon Doboy S-CH-L Bag Sealer 154.5 Inch
$16,999.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

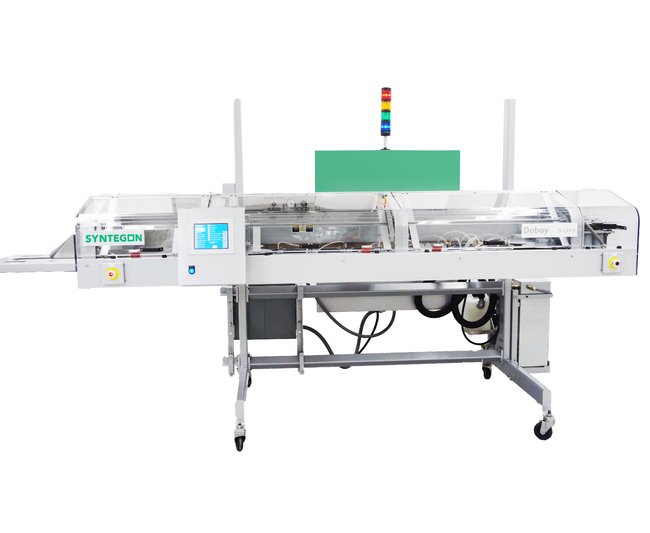

The Syntegon Doboy S-CH-L Bag Sealer offers high-speed heat sealing for coated woven polypropylene bags, enhancing product protection and reducing infestation risks. With a robust construction, AC Frequency Variable Speed Drive, and precise controls, this sealer provides rugged dependability and superior sealing quality. Its innovative features include quick band replacement, neoprene timing belts for bag top control, and Glass Polytetrafluoroethylene Sealing Bands. Designed for 3 shift/day operation, it meets industry standards like NEMA 12, ensuring efficient production in diverse environments.
Product Specifications
Additional Information Additional Information
Designed for Hard UseThe S-CH series Sealers are designed to seal bags containing bulk products at speeds of up to 100 FPM. Gauges up to 8 mil. gusseted can be used. Applications include fertilizer, resigns, titanium dioxide, garden products, agricultural chemicals, pet foods and many others. The S-CH has been constructed to provide many years of efficient production in even the toughest environments.
Features Features
Four pair of heater barsTwo pair of water cooled cooling barsPLC controls and operator interface panelRugged construction for 3 shift/day operationSeals heat sealable coated woven polypropylenePrecision temperature controlQualityPerformanceRugged Dependability

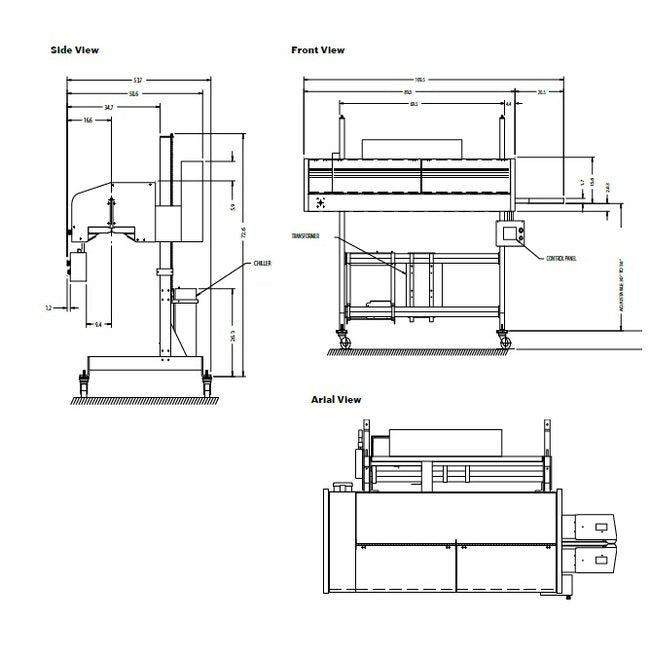

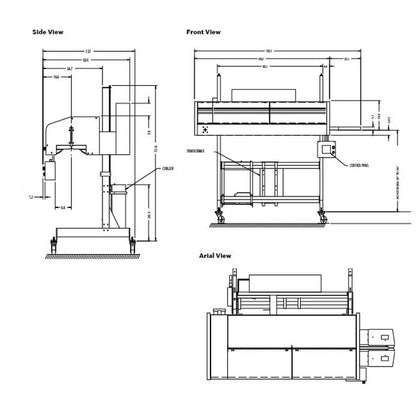

Machine Dimensions Height
72.6 in | 1845 mm
Machine Dimensions Length
154.5 in | 3924.3 mm
Machine Dimensions Length With Trimmer
179.5 in | 4559.3 mm
Machine Dimensions Width
53.7 in | 1365 mm
Note Note
Specifications subject to change without notice
Options Options
Bag top trimmer features a single, high speed cutter blade and positive scrap dischargeTape over feature used for dusty hard to seal productHigh product detectorBand break detectorSelf contained water recirculation systemFully integrated electronic package that can be supplied for integration with a bagger and scale
Outstanding Features Outstanding Features

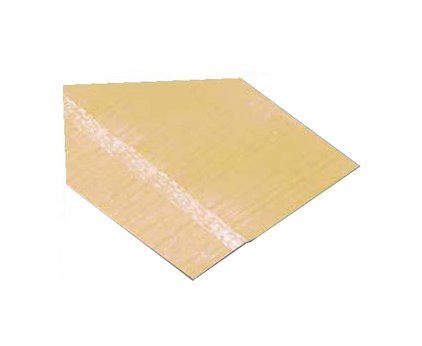

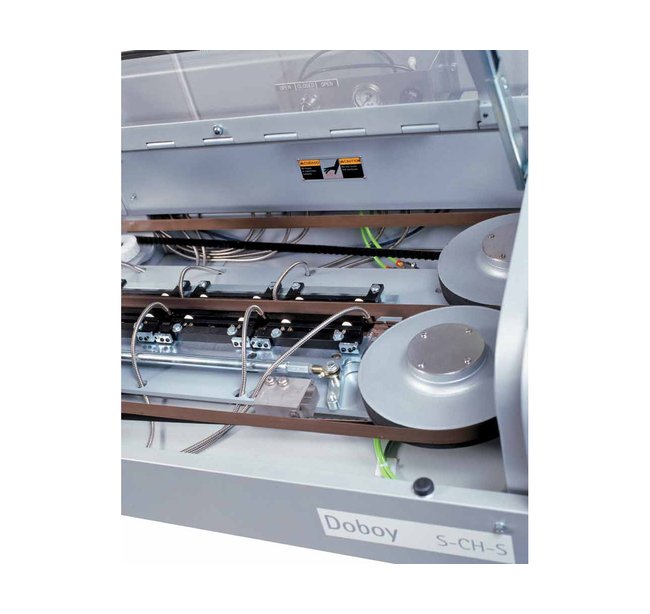

Single Point Gap Adjustment - Heating and cooling bars are mounted to a special indexing plate with a numerical reference block, eliminating the need to adjust individual bars, which saves set up time and assures accurate settings.Bag Top Control - Full-length, 1" wide neoprene timing belts grip the bag securely to provide positive bag top control. The timing belt eliminates maintenance and wear.Glass Polytetrafluoroethylene (PTFE) Sealing Bands - Provides better seals on gusseted bags and dramatically reduces machine maintenance and heating and cooling bar wear.AC Frequency Variable Speed Drive - Machine speed can be adjusted from a control panel. No belts or pulleys to adjust. Can be incorporated with other line components to provide synchronized speed.Main Frame - Main frame components are designed for dependable operation even in the most adverse conditions with extensive use of castings and cold rolled plate steel. The floor stand is constructed of welded tubular steel construction with hand crank vertical height adjustment. All guards are sheet metal or Lexan and are interlocked for safety.Heating and Cooling Bars - The S-CH-S has heating and cooling bars (2 pair of each), while the S-CH-L has 7 pair of heating and 4 pair of cooling bars. All bars have a hardened surface treatment that dramatically reduces wear and an exclusive over-travel limit to reduce sealing band wear. Water cooling is standard.Quick Change Band Replacement - The S-CH Series allows rapid band changes with no tools required, replacing in under four minutes. Bands are self-tracking and self-aligning.Touch Pad Operator Control Panel - All machine settings can be performed from an easy to operate numeric key pad. A PLC controls most machine functions and can be easily integrated with upstream or downstream equipment.Meeting Industry Needs - The S-CH Series is available in wide range of voltages, area classifications and options.
Specifications Applications
Bags | Bird Seed | Charcoal | Fertilizer | Litter | Pet Food | Seed | Sugar
Specifications Brand
Syntegon
Specifications Controls
PLC Based Touch Pad Operator Interface Panel
Specifications Cooling Bars
4 Pair (Water Cooled)
Specifications Current
28.4 A
Specifications Frequency
60 Hz
Specifications Heat Bars
7 Pair (Total of 50 in.)
Specifications Industry Standards
National Electrical Manufacturers Association (NEMA 12)
Specifications Machine Speed
0 to 100 ft/min
Specifications Main Drive
AC Frequency Variable Speed
Specifications Number Of Phase
3
Specifications Power
6250 W
Specifications Product Range
Heat sealable films up to 8 mil. gusseted/coated woven polypropylene
Specifications Sealing Bands
Impregnated Polytetrafluoroethylene (PTFE) Fiberglass
Specifications Voltage
230 V
