Syntegon GS-1000 Double Fold Glue Sealer
Syntegon GS-1000 Double Fold Glue Sealer
SKU:MAC-d63c1b
High-speed, durable double fold glue sealer for precise and secure bag sealing in primary packaging applications.
Regular price
$15,599.99
Regular price
Sale price
$15,599.99
Unit price
per
Initiate Order
Syntegon GS-1000 Double Fold Glue Sealer
$15,599.99
Quantity: 1
Claim Your Seller Account
Syntegon GS-1000 Double Fold Glue Sealer
$15,599.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

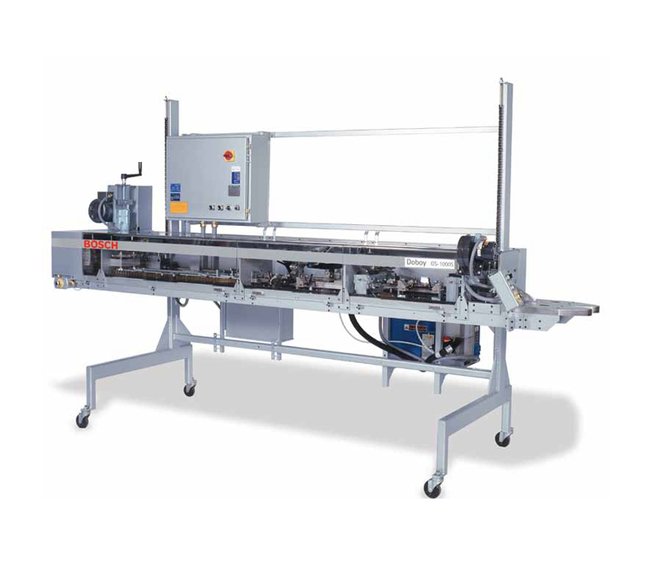

The Syntegon GS-1000 Double Fold Glue Sealer from the GS-1000 Series is a high-speed bag gluer designed for continuous flow-through operation, ideal for primary packaging in bag closing applications. Key features include patented jam-proof folder mechanism for sharp, crisp folds, consumer-friendly closure, rotary trimmer for precise trimming, and a choice of hot melt or pressurized cold glue unit for secure seals. With outstanding features like sharp fold quality, dual-axis glue gun mount, and smooth continuous feeding, this machine is built for heavy-duty operation and durability for high-speed production requirements, making it suitable for 3-shift/day operation.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information Additional Information
Parts and Service DependabilityOver 30,000 different Syntegon parts are in stock at all times. A computerized inventory control system assures immediate response, while professional Syntegon service technicians provide nationwide service, including installations, training, maintenance, and in-plant repairs.
Electrical Frequency
60 Hz
Electrical Number Of Phase
3
Electrical Voltage
440 to 220 V
Models Models
The GS-1000 for cold glue application or lower speed heat sealing.
Note Note
Products outside these limits may be packaged with machine modifications.
Outstanding Features Outstanding Features

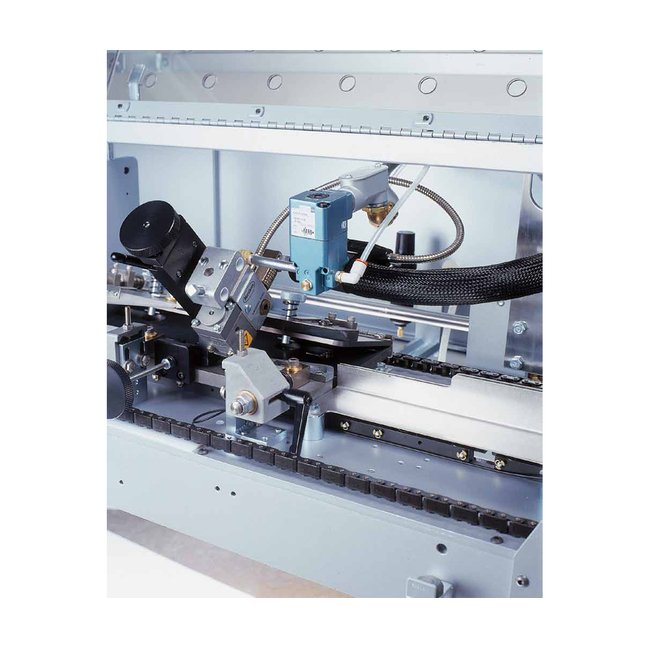

Sharp, Crisp Folds - Patented folders provide precision fold quality for straight and even folds. The folder is spring-loaded and fully adjustable. The folder hinges open for maintenance and bag adjustment. Designed for heavy-duty operation, the folder is constructed of polished plate steel.Consumer Friendly Closure - Two 3/4" folds provide a strong, sift-proof closure that is easy for the end user to open.Rotary Trimmer - Rotary trimmer cast housing provides precision alignment. The trimmer is equipped with special twin blades for consistent bag top trimming.Hot Melt or Cold Glue Unit - Choice of hot melt for high-speed applications or a pressurized cold glue extrusion system for secure seals at lower speeds. Includes micro-adjustable glue gun mount for accurate adhesive placement.Creasers - Prior to each fold, the creasers score the bag to assist in the folding process.Heat Seal Bars - Available on GS-1000 and GS-1000XL, cast iron heat bars provide inner bag liner seal.Dual Axis Glue Gun Mount - Allows precise adjustment of hot melt, which is critical to maintain accurate glue bead placement.Compression Section - The compression section is adjustable for varying bag thickness. Consistent pressure is applied to the fold for a strong secure seal. Speeds up to 100 feet per minute can be achieved.Smooth Continuous Feeding - A line shaft runs the entire length to drive trimmers and creasers. Sealed roller bearings provide smooth operation for long life and low maintenance.Bag Top Carrier Chains - Special flat face chains grip the bag for firm, positive control throughout the folding and compression sequence.Variable Speed Drive - Allows speed adjustment up to 100 inches per minute. VFD drives available as an option.
Specifications Applications
Bags
Specifications Bag Size
3 to 20 lb
Specifications Brand
Syntegon
Specifications Minimum Bag Width
3.5 to 15 in
Technical Specifications Glue Applicator
Nordson® or Valco, Others Upon Request
Technical Specifications Glue Type
Cold | Hot
Technical Specifications Height
86 in
Technical Specifications Height Range
35 to 79 in
Technical Specifications Length
192 in
Technical Specifications Speed
Up to 60 ft/min
Technical Specifications Width
44.75 in
