Syntegon GS-1000⢠Double Fold Glue Sealer - 151 Inch Length
Syntegon GS-1000⢠Double Fold Glue Sealer - 151 Inch Length
SKU:MAC-86520b
Achieve superior bag sealing with the Syntegon GS-1000⢠Double Fold Glue Sealer - 151 Inch Length. Ideal for primary packaging needs.
Regular price
$26,500.00
Regular price
Sale price
$26,500.00
Unit price
per
Initiate Order
Syntegon GS-1000⢠Double Fold Glue Sealer - 151 Inch Length
$26,500.00
Quantity: 1
Claim Your Seller Account
Syntegon GS-1000⢠Double Fold Glue Sealer - 151 Inch Length
$26,500.00
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Syntegon GS-1000⢠Series 151 Inch Double Fold Glue Sealer is a top-of-the-line solution designed for primary packaging in industries such as agriculture, pet products, and food processing. This machine, ideal for bags ranging from 3 to 20 lb, ensures a secure, sift-proof closure with its innovative double fold technology. The patented folders deliver sharp, crisp folds for enhanced infestation barrier and maximum print display area. With options for hot melt or cold glue application, along with features like rotary trimmer, dual axis glue gun mount, and smooth continuous feeding, this sealer offers unmatched precision and efficiency in bag sealing.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Additional Information Additional Information
Parts and Service DependabilityOver 30,000 different Syntegon parts are in stock at all times. A computerized inventory control system assures immediate response, while professional Syntegon service technicians provide nationwide service, including installations, training, maintenance, and in-plant repairs.
Electrical Frequency
60 Hz
Electrical Number Of Phase
3
Electrical Voltage
440 to 220 V
Features Features
Dual orifice glue gun nozzle produces 1/2" wide glue bandFolders and creasers specially designed for woven materials
Models Models
GS-1000S for hot melt application.
Note Note
Products outside these limits may be packaged with machine modifications.
Outstanding Features Outstanding Features

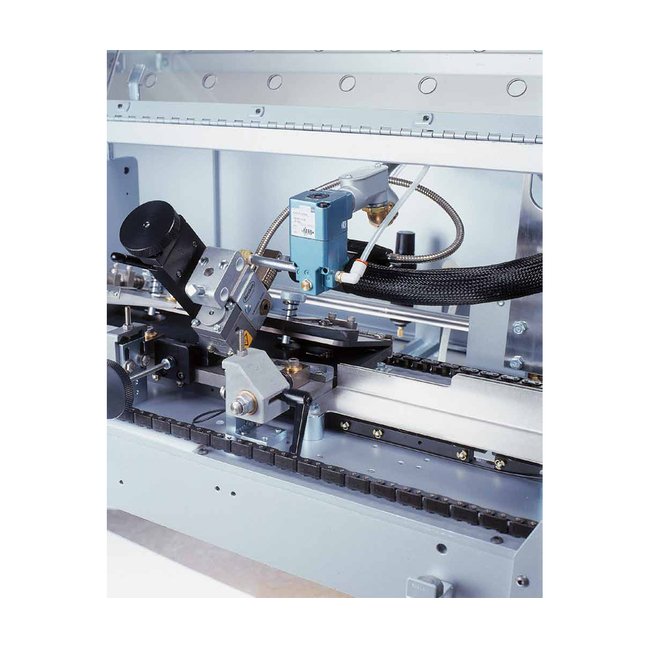

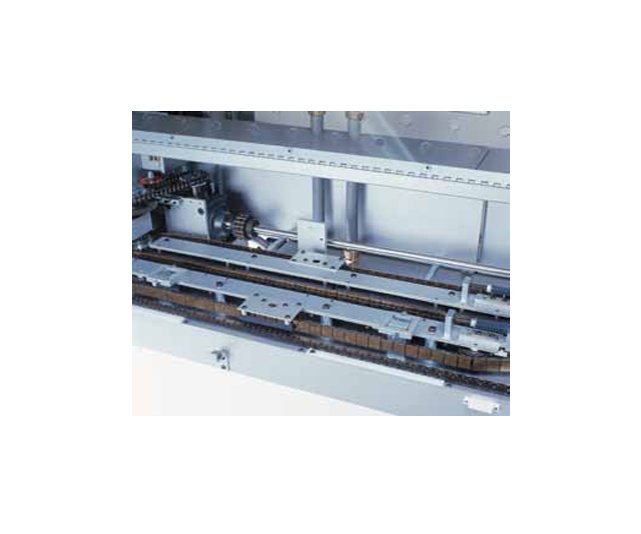

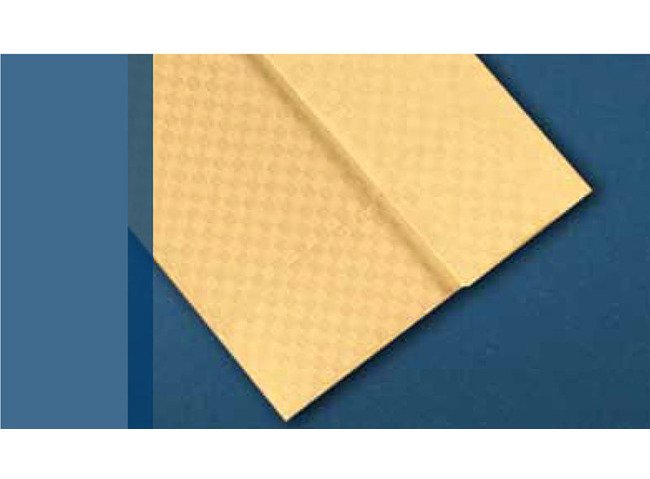

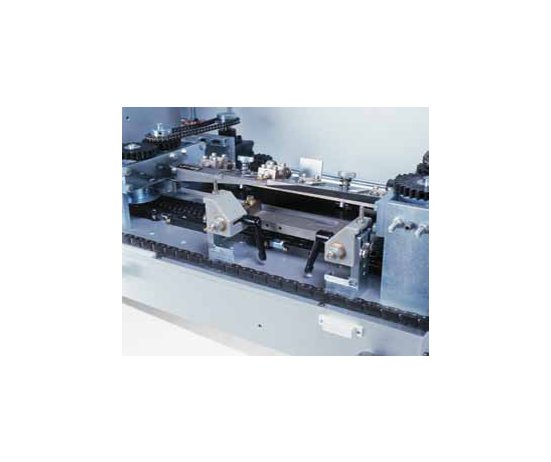

Sharp, Crisp Folds - Patented folders provide precision fold quality for straight and even folds. The folder is spring-loaded and fully adjustable. The folder hinges open for maintenance and bag adjustment. Designed for heavy-duty operation, the folder is constructed of polished plate steel.Consumer Friendly Closure - Two 3/4" folds provide a strong, sift-proof closure that is easy for the end user to open.Rotary Trimmer - Rotary trimmer cast housing provides precision alignment. The trimmer is equipped with special twin blades for consistent bag top trimming.Hot Melt or Cold Glue Unit - Choice of hot melt for high-speed applications or a pressurized cold glue extrusion system for secure seals at lower speeds. Includes micro-adjustable glue gun mount for accurate adhesive placement.Creasers - Prior to each fold, the creasers score the bag to assist in the folding process.Heat Seal Bars - Available on GS-1000 and GS-1000XL, cast iron heat bars provide inner bag liner seal.Dual Axis Glue Gun Mount - Allows precise adjustment of hot melt, which is critical to maintain accurate glue bead placement.Compression Section - The compression section is adjustable for varying bag thickness. Consistent pressure is applied to the fold for a strong secure seal. Speeds up to 100 feet per minute can be achieved.Smooth Continuous Feeding - A line shaft runs the entire length to drive trimmers and creasers. Sealed roller bearings provide smooth operation for long life and low maintenance.Bag Top Carrier Chains - Special flat face chains grip the bag for firm, positive control throughout the folding and compression sequence.Variable Speed Drive - Allows speed adjustment up to 100 inches per minute. VFD drives available as an option.
Specifications Applications
Bags | Bird Seed | Fertilizer | Pet Food | Pet products | Rice | Seed | Sugar
Specifications Bag Size
3 to 20 lb
Specifications Brand
Syntegon
Specifications Compression Section Length
56 in
Specifications Double Fold Size
1.25 in
Specifications Minimum Bag Width
3.5 to 15 in
Technical Specifications Glue Applicator
Nordson® or Valco, Others Upon Request
Technical Specifications Glue Type
Hot Melt

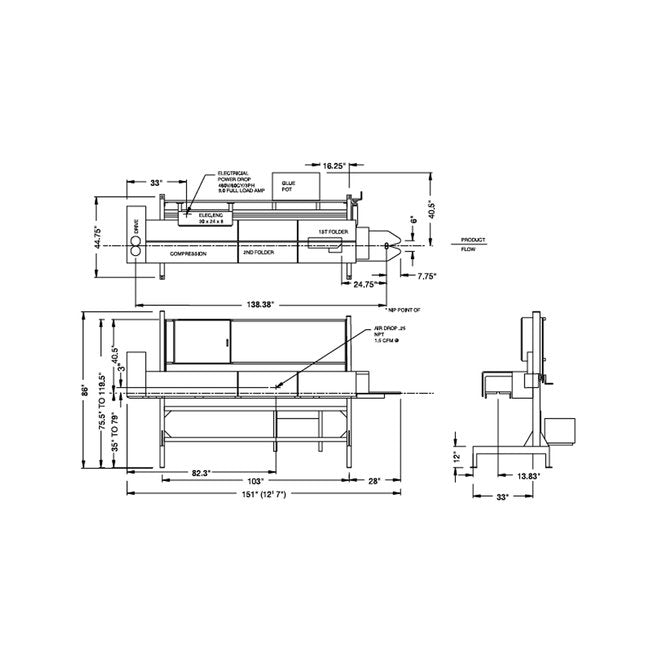

Technical Specifications Height
86 in
Technical Specifications Height Range
35 to 79 in
Technical Specifications Length
151 in
Technical Specifications Speed
Up to 80 to 85 ft/min
Technical Specifications Width
44.75 in
