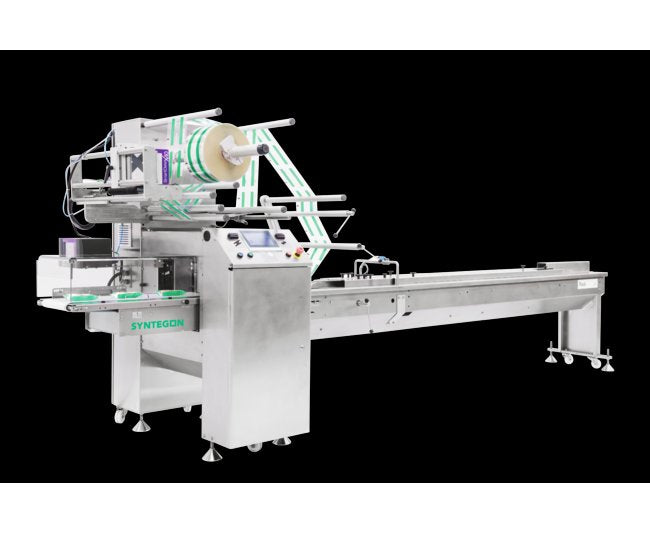

Syntegon Pack 102 Horizontal Flow Wrapping Machine

The ideal machine for small- and mid-sized enterprisesThe Pack 102 is an entry-level horizontal flow wrapper that packages products in flow wraps. With an output of up to 150 packages per minute this machine is the ideal companion for mom and pop shops and medium-sized businesses who are taking their first steps in automation or need a flow wrapper to run small batches.A multi-talented machine for nearly any applicationDue to the machine's extremely wide product size range, the Pack 102 is flexible enough to wrap small and flat to very large and tall products. It is suitable for nearly any industry, ranging from bakery, bars, biscuits, cookies and crackers, fresh produce, medical devices and more. Changing over between different products is straight-forward and in many cases no change parts are required.Quality in every aspectThe Pack 102 comes standard in a stainless steel execution and is built with quality components that last. It is easy to operate and requires virtually no routine maintenance. Syntegon has installed hundreds of the Pack 101's, the Pack 102's predecessor. Customers value the reliability of the equipment and the package quality.Made in the USA, serviced in the USALocal fabrication in the USA enables speedy deliveries and quick responses to service requests in North and Latin America. Free helpdesk support is available to troubleshoot and answer any questions. A variety of introduction and training options are available to help ensure comfort in operating the equipment. A spare parts stock in the USA makes parts available quickly.Horizontal flow wrapping is all about feeding and sealingFor horizontal flow wrapping, three different types of product feeding options can be distinguished: manual, semi-automatic and fully-automatic. The Pack 102 is available with manual or semi-automatic feeding. Depending on your desired production output, the Pack 102 can be configured with three different infeed lengths that offer manual loading space for up to three employees.One key component of a horizontal flow wrapper are the sealing elements and profiles to produce the longitudinal seal on the bottom of the package as well as the end seals. Various films with different barrier properties can be used, for example for enhanced aroma protection. The Pack 102 is capable of handling cold seal films as well as heat seal films for applications where a hermetically sealed package is required for extended shelf life. For batch coding and expiration date printing, printing equipment can be integrated. Syntegon offers a test lab service to create hand or machine wrapped sample packages, test film structure sealability and product handling characteristics.
