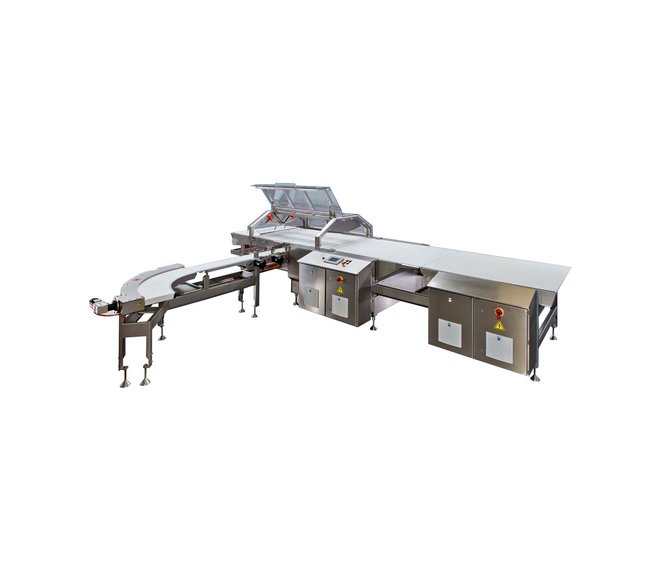

The Syntegon SmartDistribution Pullnose Feeding System is a state-of-the-art solution for gentle handling of various food products. Its hygienic design, featuring FDA-compliant transport belts, ensures food safety standards are met. With capacities up to 5 kV·A, this system offers impressive process and rows performance. The AC servo-driven motions, depositing pullnose technology, and non-contact product transfer guarantee gentle product handling. The modular design allows for quick maintenance and cleaning, while the integrated control cabinet and active belt tracking enhance reliability and efficiency.
Product Specifications
Application Information Controls
HMI: PanelViewControl: RockwellDrive: Kinetix Series
Application Information Functional Principle
All motions are AC servo driven. Gentle product handling is ensured by using depositing pullnose technology and non-contact product transfer and cross-feeding.
Application Information Operation
Double wing door allows full access for maintenance and cleaning. The modular design supports quick belt change. The absence of product guide components leads to minimum changeover time via software recipe and reduced cleaning effort.
Application Information Product Characteristics
Fragile | Semisolid or Unstable | Soft and Sticky | Solid
Application Information Product Flow And Design

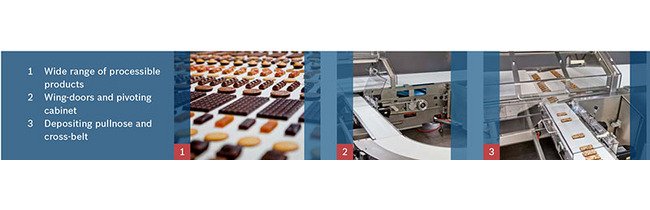

The pullnose belt tilts downwards to separate one row of products from the next. To discharge the row, the pullnose moves backwards and releases the row of a 90 degree angle onto the cross-feeding belt. Two short belts can be installed downstream to close the gaps between two distributed rows and provide a continuous product flow to the packaging machine.
Application Information System Integration
Head of line and re-feed functionalities.
Benefits Benefits
HygieneHigh accessibility and cleanabilityFlexibilityFast changovers, gentle product handlingReliabilityDurable construction, designed for 24/7 operation

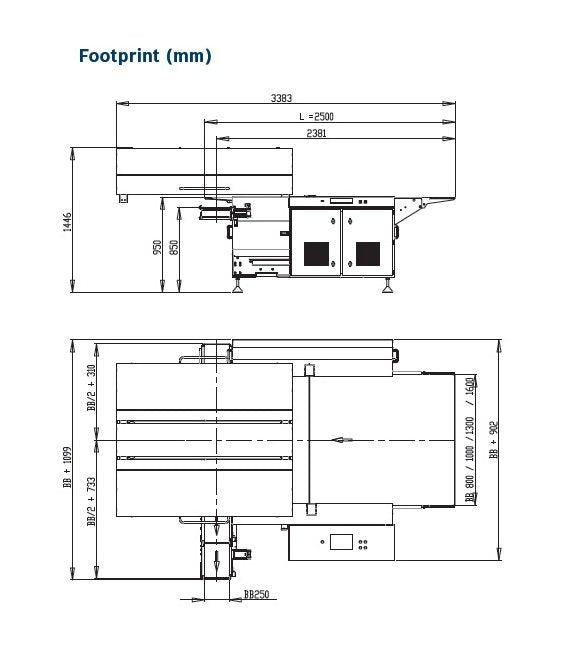

Dimensions Length
4800 mm
Dimensions Minimum Distance Between Stations
2500 mm
Dimensions Process Belt Width
800 mm | 1000 mm | 1300 mm | 1600 mm
Electrical Frequency
50 Hz | 60 Hz
Electrical Number Of Phase
3
Electrical Voltage
380 to 480 V
Note Note
Other options on request
Options Options
Second gap closing beltEnd-rollers D10mmKnife edge belt transfersHead of line functionalitiesRow alignerRow dischargeMetal detectorRe-feed belt
Performance Process Performance
Up to 65 rows/min
Performance Rows Performance
Up to 32.5 rows/min
Product Dimensions Product Height
3 to 50 mm
Product Dimensions Product Length
40 to 250 mm
Product Dimensions Product Width
20 to 250 mm
Specifications Applications
Biscuits | Cereal Bars | Chocolate Tablets | Cup Cakes | Extruded Bars | Fruit Bars | Layer Cakes | Many Other Food Products | Pizzas | Tortillas
Specifications Brand
Syntegon
Specifications Capacity
5 kV·A
Specifications Construction
Frame - Stainless steel sheet metal design. No hollow bodies.
Specifications Material
The transport belts are made of coated, continuously welded, double layered polyester. The belt material is FDA compliant and fulfills today's food safety standards.
Standard Features Standard Features
RockwellModular designIntegrated control cabinetIntegrated active belt trackingBelt scrapersCollecting traysSafety guardingEnd-rollers D14mmOne gap closing belt
