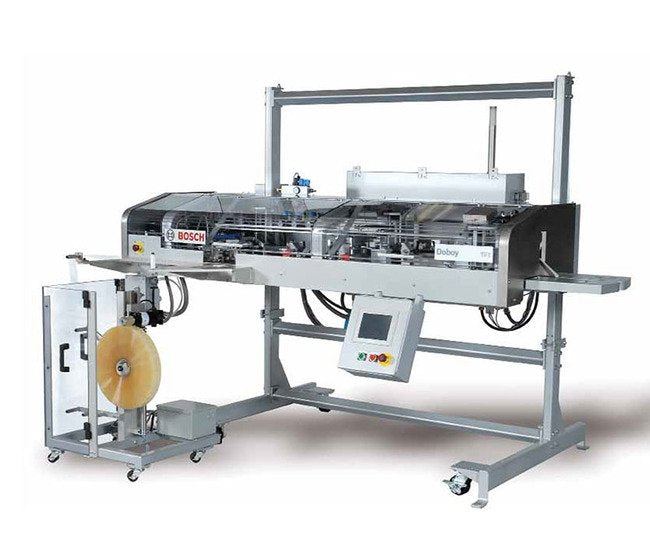

The Syntegon TFT Series High Speed Sealers are engineered for swift and secure closure of woven polypropylene bags. Operating at speeds up to 150 feet per minute, these sealers feature a patented folder for precision folds, a rotary trimmer for consistent trimming, and a tape applicator system that ensures strong, sift-proof closures. With features like creasers for optimal bag folding and a compression section for bonding, these sealers meet the highest shipping requirements. Compliant with NEMA 12 standards, the Syntegon TFT Series guarantees proven technology and durable construction for heavy-duty operations.
Product Specifications

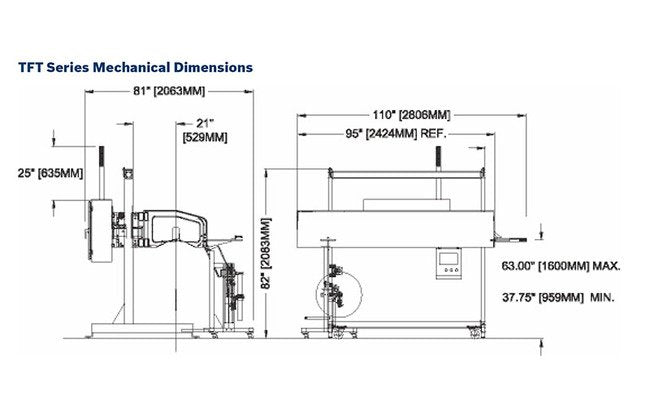

Machine Dimensions Height
82 in | 2082.8 mm
Machine Dimensions Length
111 in | 2819.4 mm
Machine Dimensions Machine Weight
1,795 lb
Machine Dimensions Width
73 in | 1854.2 mm
Note Note
Specifications subject to change without notice.
Options Options
Automatic Tape SplicerCastersSpare parts kit
Outstanding Features And Benefits Outstanding Features And Benef

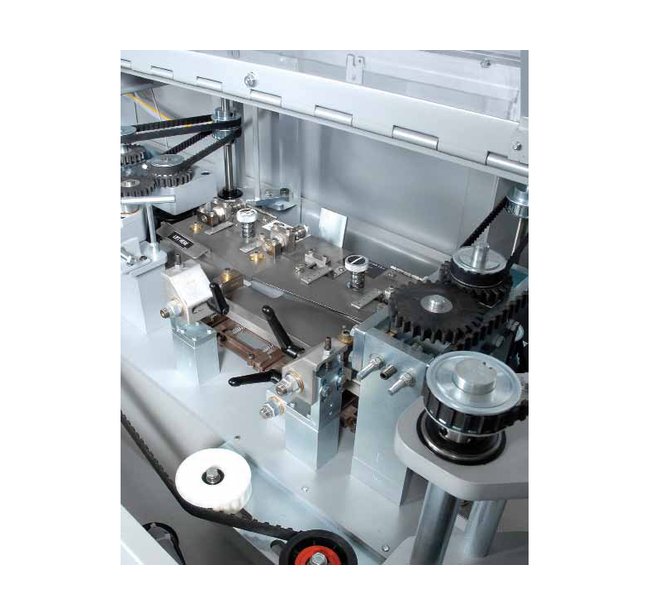

Proven Technology - The TFT incorporates many of the time tested components used on other heavy-duty Doboy sealers while incorporating the latest technology in tape application and machine controls.Secure Closure - Two 1.25 inch folds are secured with 2 inch wide polypropylene tape providing a strong, sift-proof closure. This closure easily passes even the most demanding shipping requirements.Rotary Trimmer - The TFT trimmer is based on a rugged cast housing and features oversize bearings and shafts. Twin rotary disks provide consistent trimming on even the toughest bag.Creasers - The TFT features a creasing station prior to each fold. Woven bags have a high degree of memory, it is essential to properly score the bag to provide optimal folds.Patented Folder - Patented folders provide precision fold quality for straight and even folds. The folder is spring-loaded and fully adjustable. The folder hinges open for maintenance and bag adjustment. Designed for heavy-duty operations Doboy folders are constructed of plate steel.Tape Applicator - The heart of the TFT is the tape applicator and unwind system. Designed specifically for woven bags the tape head applies clear polypropylene tape to secure the folds at speeds unobtainable in other methods of closing. Tape cutoff and placement is precise and dependable.Compression Section - After application by the tape head the tape is compressed to form a strong bond. Bags can be handled immediately upon discharge. The compression roller is fully adjustable for a wide range of bag compositions.Bag Top Control - Full length timing belts grip the bag securely. The use of timing belts dramatically reduce wear and requires very little if any maintenance.Machine Controls - The TFT features an Allen/Bradley PLC ,operator interface and variable frequency drive. All machine controls, settings and alarms are addressable through the HMI. Line control functions are provided for upstream and downstream machine communication.
Specifications Brand
Syntegon
Technical Specifications Air Flow
3 ft³/min | 60 psi

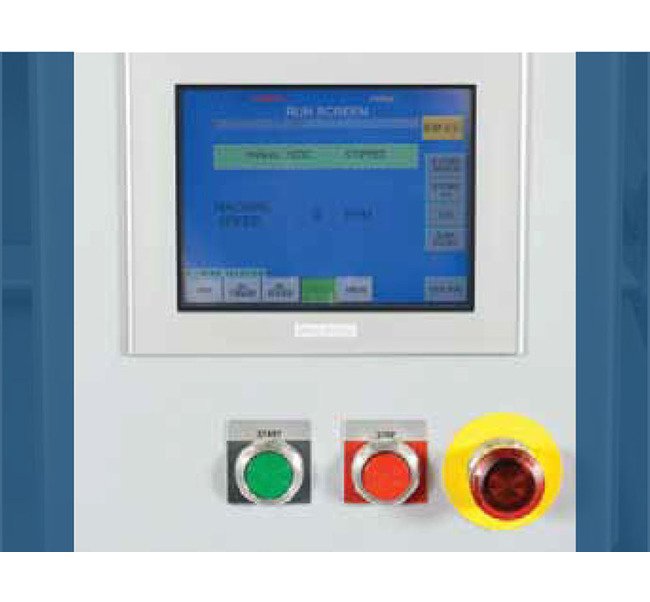

Technical Specifications Controls
Allen Bradley PLC and Operator Interface Panel
Technical Specifications Feed Direction
Left to Right | Right to Left
Technical Specifications Fold Size
1.25 in
Technical Specifications Frequency
60 Hz
Technical Specifications Industry Standards
National Electrical Manufacturers Association (NEMA 12)
Technical Specifications Main Drive
AC Frequency Variable Speed
Technical Specifications Number Of Phase
3
Technical Specifications Production Speed
150 ft/min | 45.72 m/min
Technical Specifications Product Range
8 mil. Gusseted/Coated Woven Polypropylene
Technical Specifications Tape Color
Clear
Technical Specifications Tape Core Diameter
20 in | 508 mm
Technical Specifications Voltage
220 to 480 V
