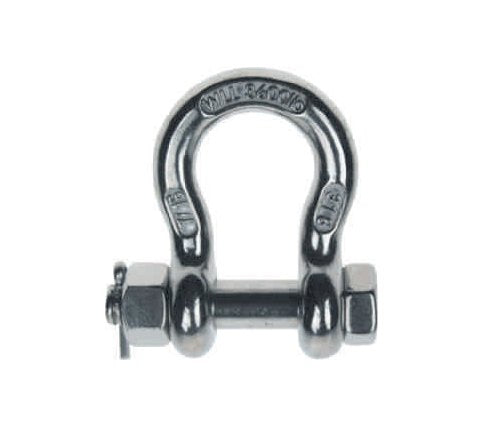

T-316 Stainless Steel 1/2 Inch Bolt Pin Anchor Shackle

T-316 Stainless Steel 1/2 Inch Bolt Pin Anchor Shackle

SKU:WIR-1a9c21

Heavy-duty T-316 Stainless Steel Bolt Pin Anchor Shackle, WLL 3,000 lbs, exceeds federal specs, high breaking strength, ideal for industrial use.

Regular price $29.99
Regular price Sale price $29.99
Sale

Initiate Order

T-316 Stainless Steel 1/2 Inch Bolt Pin Anchor Shackle

T-316 Stainless Steel 1/2 Inch Bolt Pin Anchor Shackle

$29.99

Quantity: 1

Claim Your Seller Account

T-316 Stainless Steel 1/2 Inch Bolt Pin Anchor Shackle

T-316 Stainless Steel 1/2 Inch Bolt Pin Anchor Shackle

$29.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The T-316 Stainless Steel Precision Cast Load Rated Bolt Pin Anchor Shackle is a heavy-duty and reliable anchor shackle designed for industrial applications. With a Working Load Limit (WLL) of 3,000 lbs, this shackle exceeds federal specifications (RR-C-271D, Type IV A, Class 3) ensuring superior strength and safety. It boasts a high breaking strength, four times the WLL, and a proof test load of 1.5 times the WLL. This shackle is ideal for environments demanding precision, durability, and compliance with stringent standards.

Product Specifications

Note Note
Dimensions meet federal. Specification: RR-C-271D, Type IV A, Class 3Breaking strength is 4 times of the WLL; Proof test load is 1.5 times of the WLL.

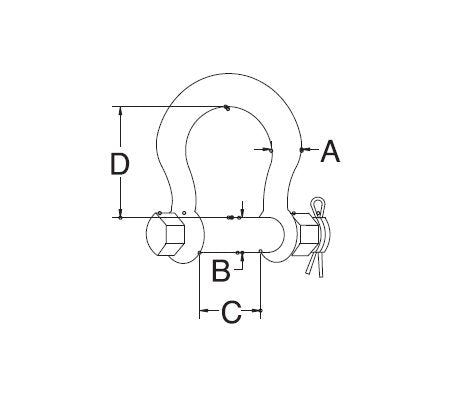

Specifications Dimension A
1/2 "
Specifications Dimension B
5/8 "
Specifications Dimension C
7/8 "
Specifications Dimension D
1-7/8 "
Specifications Material
T-316 Stainless Steel
Specifications Shackle Type
Anchor
Specifications Weight
0.70 lb
Specifications Wll
3,000 lb
CAGE
0T9L4
NAICS
332722
PSC
5306
