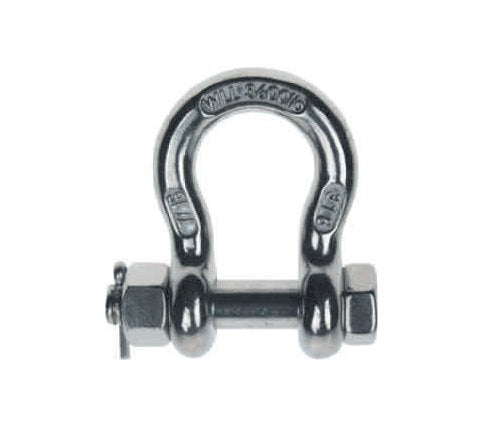

T-316 Stainless Steel 7/16 Inch Precision Cast Load Rated Anchor Shackle

T-316 Stainless Steel 7/16 Inch Precision Cast Load Rated Anchor Shackle

SKU:WIR-2c5ab7

High-strength T-316 Stainless Steel Anchor Shackle, WLL 2,000 lb, compliant with federal specifications. Dependable for heavy-duty applications.

Regular price $24.99
Regular price Sale price $24.99
Sale

Initiate Order

T-316 Stainless Steel 7/16 Inch Precision Cast Load Rated Anchor Shackle

T-316 Stainless Steel 7/16 Inch Precision Cast Load Rated Anchor Shackle

$24.99

Quantity: 1

Claim Your Seller Account

T-316 Stainless Steel 7/16 Inch Precision Cast Load Rated Anchor Shackle

T-316 Stainless Steel 7/16 Inch Precision Cast Load Rated Anchor Shackle

$24.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The T-316 Stainless Steel Precision Cast Load Rated Bolt Pin Anchor Shackle is a durable and reliable hardware tool designed for heavy-duty applications. With a Working Load Limit (WLL) of 2,000 lb and breaking strength four times the WLL, this shackle ensures secure fastening in critical environments. Compliant with federal specifications RR-C-271D, Type IV A, Class 3, and meeting rigorous proof test load standards, this anchor shackle is ideal for government and institutional procurement needs.

Product Specifications

Note Note
Dimensions meet federal. Specification: RR-C-271D, Type IV A, Class 3Breaking strength is 4 times of the WLL; Proof test load is 1.5 times of the WLL.

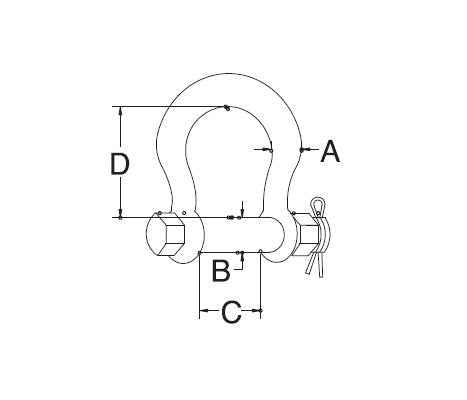

Specifications Dimension A
7/16 "
Specifications Dimension B
1/2 "
Specifications Dimension C
3/4 "
Specifications Dimension D
1-5/8 "
Specifications Material
T-316 Stainless Steel
Specifications Shackle Type
Anchor
Specifications Weight
0.45 lb
Specifications Wll
2,000 lb
CAGE
0T9L4
NAICS
332999
PSC
5340
