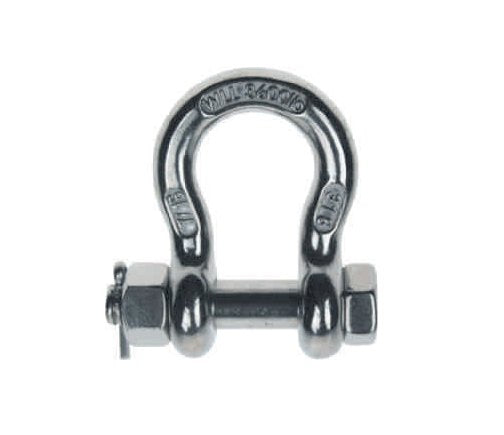

T-316 Stainless Steel 7/8" Bolt Pin Anchor Shackle

T-316 Stainless Steel 7/8" Bolt Pin Anchor Shackle

SKU:WIR-b0fb1d

Heavy-duty T-316 Stainless Steel Anchor Shackle for secure and reliable anchoring. Meets federal specifications. WLL: 8,000 lb.

Regular price $49.99
Regular price Sale price $49.99
Sale

Initiate Order

T-316 Stainless Steel 7/8" Bolt Pin Anchor Shackle

T-316 Stainless Steel 7/8" Bolt Pin Anchor Shackle

$49.99

Quantity: 1

Claim Your Seller Account

T-316 Stainless Steel 7/8" Bolt Pin Anchor Shackle

T-316 Stainless Steel 7/8" Bolt Pin Anchor Shackle

$49.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The T-316 Stainless Steel Precision Cast Load Rated Bolt Pin Anchor Shackle is a heavy-duty shackle designed for robust anchoring applications. Made from T-316 stainless steel, it offers exceptional strength and corrosion resistance. With a working load limit of 8,000 lb and a breaking strength four times that, this shackle ensures reliable performance under high stress. Compliant with federal specification RR-C-271D, Type IV A, Class 3, and featuring dimensions that meet stringent standards, it is a top choice for government and institutional buyers seeking quality and precision.

Product Specifications

Note Note
Dimensions meet federal. Specification: RR-C-271D, Type IV A, Class 3Breaking strength is 4 times of the WLL; Proof test load is 1.5 times of the WLL.

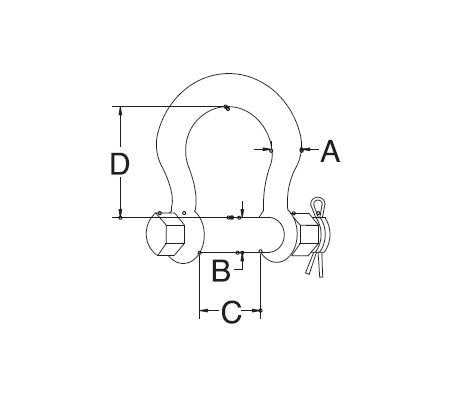

Specifications Dimension A
7/8 "
Specifications Dimension B
1 "
Specifications Dimension C
1-1/2 "
Specifications Dimension D
3-7/16 "
Specifications Material
T-316 Stainless Steel
Specifications Shackle Type
Anchor
Specifications Weight
3.40 lb
Specifications Wll
8,000 lb
CAGE
0T9L4
NAICS
332722
PSC
5306
