T-316 Stainless Steel Anchor Shackle Bolt Pin 1-1/4 in

T-316 Stainless Steel Anchor Shackle Bolt Pin 1-1/4 in

SKU:WIR-d35544

Heavy-duty T-316 Stainless Steel Anchor Shackle with 14,000 lb WLL & federal spec compliance

Regular price $79.99
Regular price Sale price $79.99
Sale

Initiate Order

T-316 Stainless Steel Anchor Shackle Bolt Pin 1-1/4 in

T-316 Stainless Steel Anchor Shackle Bolt Pin 1-1/4 in

$79.99

Quantity: 1

Claim Your Seller Account

T-316 Stainless Steel Anchor Shackle Bolt Pin 1-1/4 in

T-316 Stainless Steel Anchor Shackle Bolt Pin 1-1/4 in

$79.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

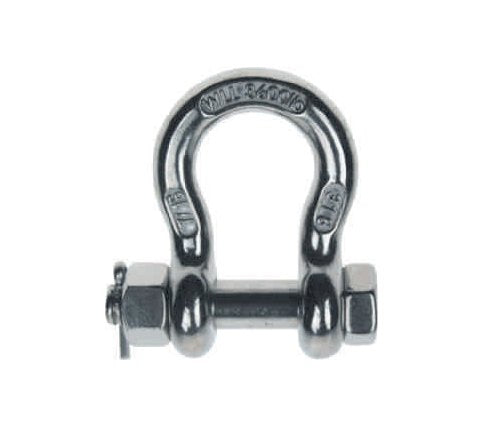

The T-316 Stainless Steel Precision Cast Load Rated Bolt Pin Anchor Shackle is a heavy-duty and reliable hardware essential for various applications. Featuring dimensions that meet federal specifications RR-C-271D, Type IV A, Class 3, this shackle offers a Working Load Limit (WLL) of 14,000 lb with a breaking strength four times that. Additionally, it undergoes a proof test load of 1.5 times the WLL, ensuring exceptional safety and durability. Ideal for industrial, marine, and construction use, this shackle is a top choice for those seeking high-quality, compliant, and strong anchoring solutions.

Product Specifications

Note Note
Dimensions meet federal. Specification: RR-C-271D, Type IV A, Class 3Breaking strength is 4 times of the WLL; Proof test load is 1.5 times of the WLL.

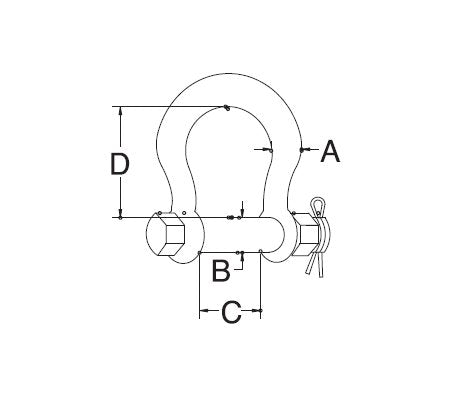

Specifications Dimension A
1-1/4 "
Specifications Dimension B
1-3/8 "
Specifications Dimension C
2-1/8 "
Specifications Dimension D
4-5/8 "
Specifications Material
T-316 Stainless Steel
Specifications Shackle Type
Anchor
Specifications Weight
11.00 lb
Specifications Wll
14,000 lb
CAGE
0T9L4
NAICS
332722
PSC
5306
