T-316 Stainless Steel Bolt Pin Anchor Shackle - 5/16" Dimension A

T-316 Stainless Steel Bolt Pin Anchor Shackle - 5/16" Dimension A

SKU:WIR-37840c

Discover the strength and reliability of the T-316 Stainless Steel Anchor Shackle - perfect for industrial applications.

Regular price $23.99
Regular price Sale price $23.99
Sale

Initiate Order

T-316 Stainless Steel Bolt Pin Anchor Shackle - 5/16" Dimension A

T-316 Stainless Steel Bolt Pin Anchor Shackle - 5/16" Dimension A

$23.99

Quantity: 1

Claim Your Seller Account

T-316 Stainless Steel Bolt Pin Anchor Shackle - 5/16" Dimension A

T-316 Stainless Steel Bolt Pin Anchor Shackle - 5/16" Dimension A

$23.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

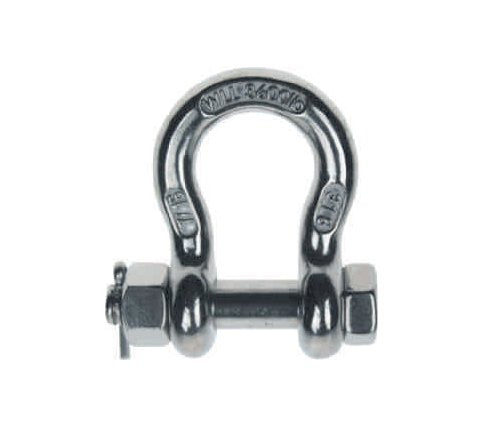

The T-316 Stainless Steel Precision Cast Load Rated Bolt Pin Anchor Shackle offers superior strength and reliability for both consumer and institutional applications. With a Working Load Limit (WLL) of 1,300 lb and a breaking strength four times of the WLL, this shackle provides unmatched safety and durability. Compliant with federal specification RR-C-271D, Type IV A, Class 3, and featuring dimensions that meet stringent standards, this anchor shackle is ideal for heavy-duty industrial use.

Product Specifications

Note Note
Dimensions meet federal. Specification: RR-C-271D, Type IV A, Class 3Breaking strength is 4 times of the WLL; Proof test load is 1.5 times of the WLL.

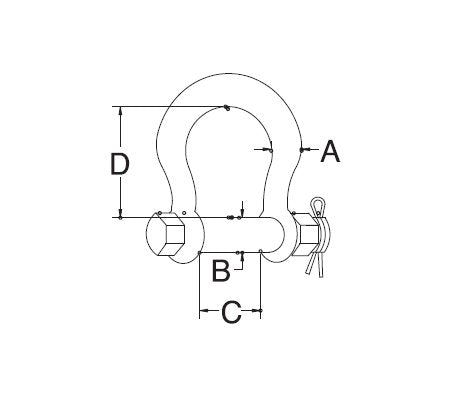

Specifications Dimension A
5/16 "
Specifications Dimension B
3/8 "
Specifications Dimension C
1/2 "
Specifications Dimension D
1-1/4 "
Specifications Material
T-316 Stainless Steel
Specifications Shackle Type
Anchor
Specifications Weight
0.20 lb
Specifications Wll
1,300 lb
CAGE
0T9L4
NAICS
332722
PSC
5306
