T-316 Stainless Steel Precision Cast Load Rated Anchor Shackle - 3/16in

T-316 Stainless Steel Precision Cast Load Rated Anchor Shackle - 3/16in

SKU:WIR-60ac01

High-strength T-316 Stainless Steel Anchor Shackle - 3/16in Dimension, WLL 650 lb. Exceeds federal specs. Breaking strength 4x WLL.

Regular price $14.99
Regular price Sale price $14.99
Sale

Initiate Order

T-316 Stainless Steel Precision Cast Load Rated Anchor Shackle - 3/16in

T-316 Stainless Steel Precision Cast Load Rated Anchor Shackle - 3/16in

$14.99

Quantity: 1

Claim Your Seller Account

T-316 Stainless Steel Precision Cast Load Rated Anchor Shackle - 3/16in

T-316 Stainless Steel Precision Cast Load Rated Anchor Shackle - 3/16in

$14.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

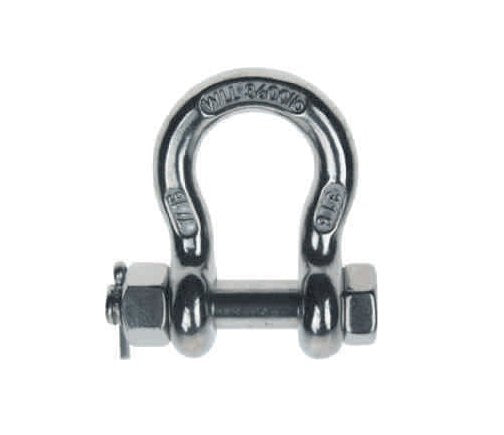

The T-316 Stainless Steel Precision Cast Load Rated Bolt Pin Anchor Shackle in 3/16in Dimension A is a durable and high-strength anchoring solution. With a Working Load Limit (WLL) of 650 lb, this shackle exceeds federal specifications (RR-C-271D, Type IVA, Class 3) ensuring reliability and safety. It boasts a breaking strength four times that of the WLL and undergoes a proof test load of 1.5 times the WLL. Ideal for heavy-duty applications in industrial, marine, and construction settings.

Product Specifications

Note Note
Dimensions meet federal. Specification: RR-C-271D, Type IV A, Class 3Breaking strength is 4 times of the WLL; Proof test load is 1.5 times of the WLL.

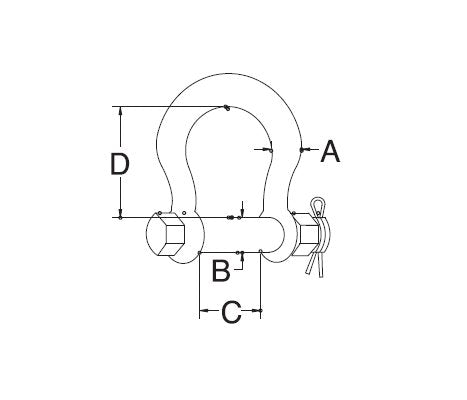

Specifications Dimension A
3/16 "
Specifications Dimension B
1/4 "
Specifications Dimension C
3/8 "
Specifications Dimension D
7/8 "
Specifications Material
T-316 Stainless Steel
Specifications Shackle Type
Anchor
Specifications Weight
0.06 lb
Specifications Wll
650 lb
CAGE
0T9L4
NAICS
332999
PSC
5340
