T-316 Stainless Steel Precision Cast Screw Pin Bow Shackle - 2-5/32 Inches

T-316 Stainless Steel Precision Cast Screw Pin Bow Shackle - 2-5/32 Inches

SKU:WIR-323129

High-strength T-316 Stainless Steel Bow Shackle - 2-5/32 Inches, WLL 9,500 lb, Corrosion-Resistant

Regular price $39.99
Regular price Sale price $39.99
Sale

Initiate Order

T-316 Stainless Steel Precision Cast Screw Pin Bow Shackle - 2-5/32 Inches

T-316 Stainless Steel Precision Cast Screw Pin Bow Shackle - 2-5/32 Inches

$39.99

Quantity: 1

Claim Your Seller Account

T-316 Stainless Steel Precision Cast Screw Pin Bow Shackle - 2-5/32 Inches

T-316 Stainless Steel Precision Cast Screw Pin Bow Shackle - 2-5/32 Inches

$39.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

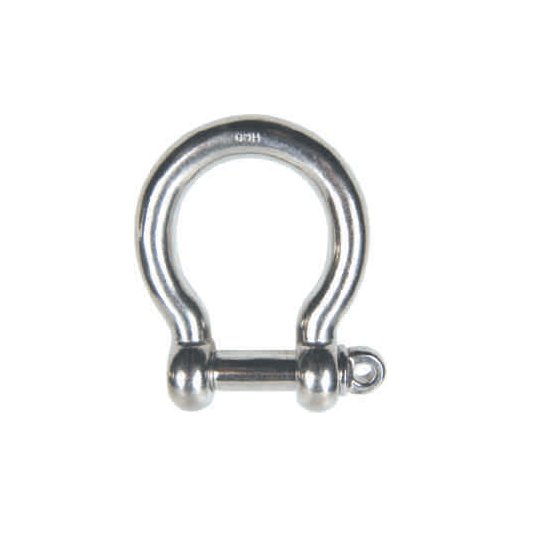

The T-316 Stainless Steel Precision Cast Screw Pin Bow Shackle is a durable and reliable fastening solution suitable for a wide range of applications. Crafted from high-quality T-316 stainless steel, this bow shackle excels in strength and corrosion resistance, ensuring long-lasting performance in tough environments. With a Working Load Limit (WLL) of 9,500 lb, this shackle is engineered to meet the demanding requirements of industrial, marine, and construction settings. The precise casting and 2-5/32-inch Dimension C make it ideal for secure connections and lifting operations.

Product Specifications

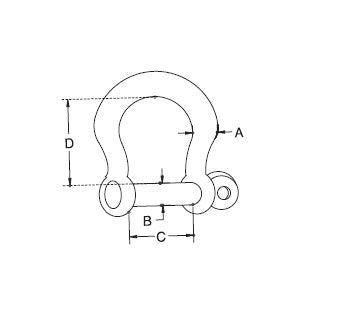

Specifications Dimension A
1-1/8 "
Specifications Dimension B
1-1/8 "
Specifications Dimension C
2-5/32 "
Specifications Dimension D
5 "
Specifications Material
T-316 Stainless Steel
Specifications Shackle Type
Bow
Specifications Weight
7.00 lb
Specifications Wll
9,500 lb
CAGE
0T9L4
NAICS
332999
PSC
5340
