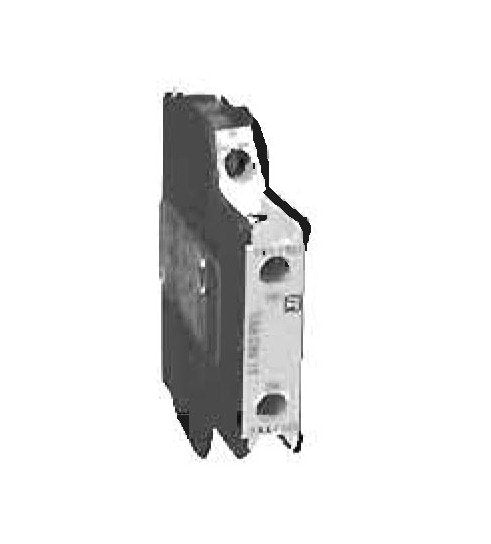

• T and F-Range Instantaneous Auxiliary Contact Block - Image 1
1 1
Shamrock Controls div. of Burns Controls Company →

T and F-Range Instantaneous Auxiliary Contact Block

T and F-Range Instantaneous Auxiliary Contact Block

CON-a04728

Enhance your contactor setups with the Shamrock Controls T and F-Range Instantaneous Auxiliary Contact Block featuring 1 Normally Open and 1 Normally Closed contact.

$49.99
$49.99
Sale

Initiate Order

T and F-Range Instantaneous Auxiliary Contact Block

T and F-Range Instantaneous Auxiliary Contact Block

$49.99

Quantity: 1

Claim Your Seller Account

T and F-Range Instantaneous Auxiliary Contact Block

T and F-Range Instantaneous Auxiliary Contact Block

$49.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The T and F-Range Standard Instantaneous Auxiliary Contact Block by Shamrock Controls is a high-performance component designed for precise electrical contact applications. With 1 Normally Open and 1 Normally Closed contact, this auxiliary block ensures reliable operation in various contactor setups. Rated for a thermal current of 10A, with a broad frequency range of 25 to 400 Hz, and exceptional short-time current ratings, this block guarantees robust performance under demanding conditions. The secure snap-on mounting feature allows easy installation on compatible models, making it an ideal choice for contactors in industrial and institutional settings.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Specifications Contacts Normally Closed Nc
1
Specifications Contacts Normally Open No
1
Specifications Contact Type
Normally Closed | Normally Open
Specifications Frequency Of Operational Current
25 to 400 Hz
Specifications Insulation Resistance
> 10 MΩ
Specifications Mechanical Life
30 Million Cycles
Specifications Minimum Switching Current Capacity I Min
5 mA
Specifications Minimum Switching Voltage Capacity U Min
17 V
Specifications Number Of Contacts
2
Specifications Permissible Short Time Current Rating For At 100
140 A
Specifications Permissible Short Time Current Rating For At 1 Se
100 A
Specifications Permissible Short Time Current Rating For At 500
120 A
Specifications Rated Thermal Current For Ambient Temperature 40
10 A
Specifications Snap On Mounting
To the side of TC1D09-D95, TP1D09-D90, TP1DC09/12/25, TCA2DN/TCA3DN
Specifications Time Delay Ambient Air Temperature For Operation
-40 to 70 ºC
