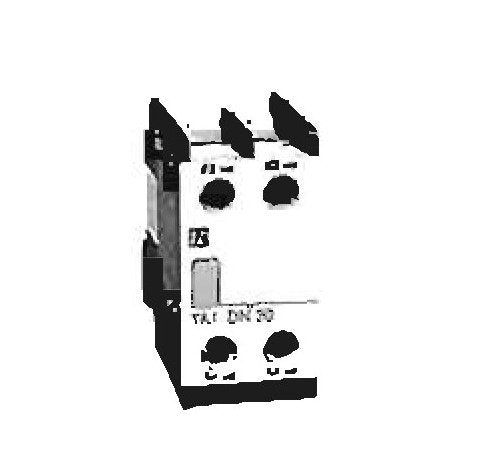

T and F-Range Standard Instantaneous Auxiliary Contact Block - 2NO 0NC
T and F-Range Standard Instantaneous Auxiliary Contact Block - 2NO 0NC
SKU:CON-78d50c
Enhance your contactors with 2 Normally Open and 0 Normally Closed contacts. Reliable performance in a compact design.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
T and F-Range Standard Instantaneous Auxiliary Contact Block - 2NO 0NC
$34.99
Quantity: 1
Claim Your Seller Account
T and F-Range Standard Instantaneous Auxiliary Contact Block - 2NO 0NC
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The T and F-Range Standard Instantaneous Auxiliary Contact Block features 2 Normally Open and 0 Normally Closed contacts. Made by Shamrock Controls, it offers a rated thermal current of 10A, 30 million cycles mechanical life, and snap-on mounting capability to compatible models. Ideal for contactors, this auxiliary contact block ensures reliable performance in a wide range of operational conditions. Meeting stringent industry standards, it provides essential features for both consumer and institutional buyers.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Contacts Normally Closed Nc
0
Specifications Contacts Normally Open No
2
Specifications Contact Type
Normally Closed | Normally Open
Specifications Frequency Of Operational Current
25 to 400 Hz
Specifications Insulation Resistance
> 10 MΩ
Specifications Mechanical Life
30 Million Cycles
Specifications Minimum Switching Current Capacity I Min
5 mA
Specifications Minimum Switching Voltage Capacity U Min
17 V
Specifications Number Of Contacts
2
Specifications Permissible Short Time Current Rating For At 100
140 A
Specifications Permissible Short Time Current Rating For At 1 Se
100 A
Specifications Permissible Short Time Current Rating For At 500
120 A
Specifications Rated Thermal Current For Ambient Temperature 40
10 A
Specifications Snap On Mounting
To the side of TC1D09-D95, TP1D09-D90, TP1DC09/12/25, TCA2DN/TCA3DN
Specifications Time Delay Ambient Air Temperature For Operation
-40 to 70 ºC
