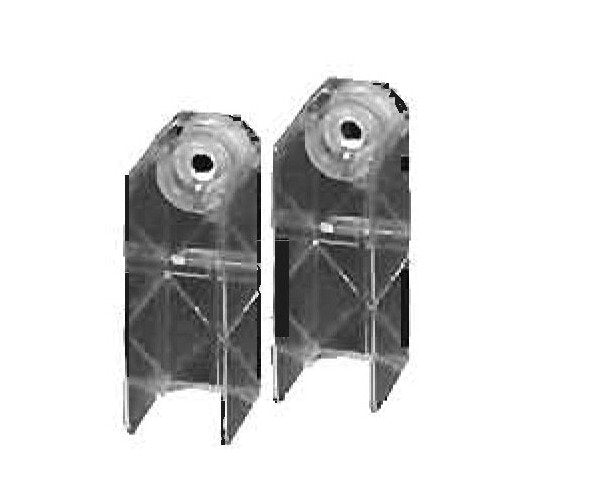

T&F Front Mount Pneumatic Timer Block - 1 to 30s On Delay
T&F Front Mount Pneumatic Timer Block - 1 to 30s On Delay
SKU:CON-4d38ea
High-performance 1-30s On Delay Timer Block for industrial applications.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
T&F Front Mount Pneumatic Timer Block - 1 to 30s On Delay
$89.99
Quantity: 1
Claim Your Seller Account
T&F Front Mount Pneumatic Timer Block - 1 to 30s On Delay
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The T&F Front Mounted Pneumatic Timer Block offers precise timing capabilities from 1 to 30 seconds, ideal for a wide range of applications. With a reputable brand like Shamrock Controls, this timer block boasts durable construction, high short-time current ratings, and reliable operation in temperatures ranging from -40 to 70°C. Its accuracy, repeatable performance, and mechanical durability make it a top choice for industrial and institutional users.
Product Specifications
Note Note
With switching time of 40 msec + 15 msec between th opening of NC contact to the closing of NO contact (for Star Delta Application)
Specifications Accuracy Only Valid For Setting Range
15 %
Specifications Auxiliary Contacts Normally Closed Nc
1
Specifications Auxiliary Contacts Normally Open No
1
Specifications Frequency Of Operational Current
25 to 400 Hz
Specifications Indicated On The Front Face Per Degree Celsius C
0.25 %
Specifications Insulation Resistance
> 10 MΩ
Specifications Mechanical Life
5 Million Cycles
Specifications Minimum Switching Current Capacity I Min
5 mA
Specifications Minimum Switching Voltage Capacity U Min
17 V
Specifications Number Of Contacts
2
Specifications Permissible Short Time Current Rating For At 100
140 A
Specifications Permissible Short Time Current Rating For At 1 Se
100 A
Specifications Permissible Short Time Current Rating For At 500
120 A
Specifications Range
1 to 30 s
Specifications Rated Thermal Current For Ambient Temperature 40
10 A
Specifications Repeat Accuracy
5 %
Specifications Time Delay Ambient Air Temperature For Operation
-40 to 70 ºC
