T Series Tramp Iron Trap Magnetic Community Tank Filter
T Series Tramp Iron Trap Magnetic Community Tank Filter
SKU:TSE-651a9a
Powerful magnet filter for community tanks, ideal for trapping iron particles in sand, grain, or liquids. Easy to install with low maintenance requirements.
Regular price
$349.99
Regular price
Sale price
$349.99
Unit price
per
Initiate Order
T Series Tramp Iron Trap Magnetic Community Tank Filter
$349.99
Quantity: 1
Claim Your Seller Account
T Series Tramp Iron Trap Magnetic Community Tank Filter
$349.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

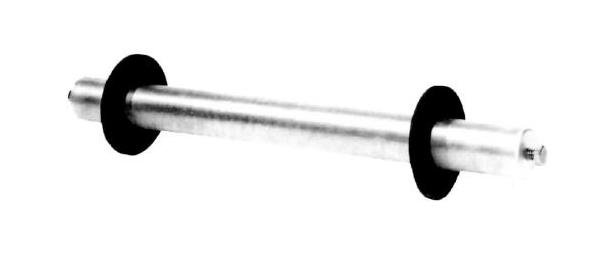

The T Series Tramp Iron Trap Magnetic Community Tank Filter is an essential solution for institutions and government facilities. Designed to be installed at the outlet of chutes, hoppers, or coolant lines, this powerful permanent magnet filter effectively traps iron particles in various materials such as sand, grain, foods, or liquids. The filter features a standard aluminum housing with ceramic magnets, and optional Alnico or Neodymium magnets. Its easy installation, low maintenance requirements, and efficient particle capture make it ideal for industrial settings. Cleanliness, extended tool life, and increased production are guaranteed benefits of incorporating this filter into your community tank setup.
Product Specifications
Additional Information 0

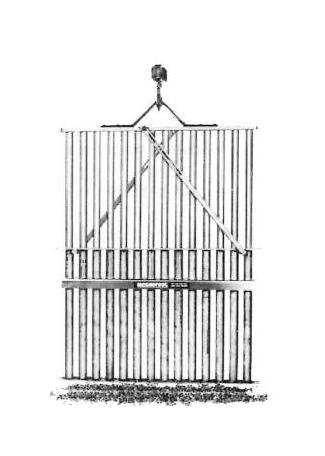

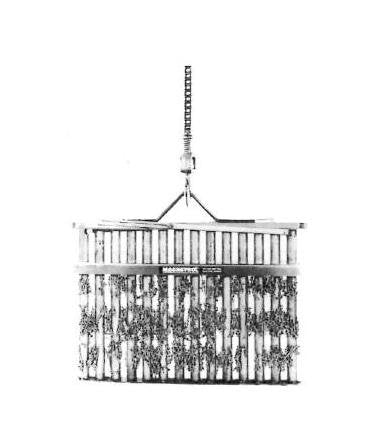

Community Tank FiltersEngineered to fit the Job.Have only clean coolant flowing to the work area. Our engineers are available to help you.In large community coolant tanks, heavy chips will sink to the bottom and remain there, but lighter chips, filings and grindings will stay in suspension, returning to the work area. They often cause costly damage to tools and workpiece.Magnetool filters trap all steel and iron particles passing through the coolant tank, reduce wear in coolant pumps, extend tool life in multiple cuffing and drilling operations, save down-time, increase production.This Magnetool magnetic filter is used in a community coolant tank serving a battery of machines. It has eliminated broken tools and saved many production hours. To clean, it is lifted from the tank; stainless steel tubes encasing the magnets are disengaged chips fall off.
Manufacturing Notes 0
Housing Material: Standard housing is aluminum. Stainless Steel available on special request.
Specifications Available Magnet
Alnico | Neodymium
Specifications Features
Easy to install | Load simply drops off | Requires no maintainance
Specifications Magnet Length
33 1/4 in
Specifications Overall Length
37 1/4 in
Specifications Standard Housing Material
Aluminum
Specifications Standard Magnet
Ceramic
Specifications Tube Diameter
1 1/8 in
Applications 0

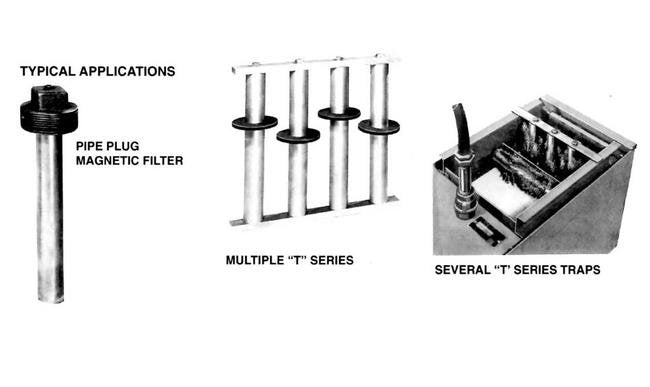

Pipe Plug Magnetic FilterDesigned to fit into the reservoir of a hydraulic fluid system. Can be made any length, any magnetic strength to fit your needs. Clean by wiping with waste, cloth or paper towel.Multiple "T" SeriesAssembled into a grate can be used in a chute or hopper to remove ferrous contaminants from sand, grain, dry foods and crushed or powdered materials.Several "T" Series TrapsMay be attached to a bar and suspended in a tank of flowing liquid. Where desirable, traps may be mounted horizontally.
