T Series Tramp Iron Trap Tank Filter
T Series Tramp Iron Trap Tank Filter
SKU:TSE-a582f6
Powerful magnet-based filter for removing iron particles in sand, grain, foods, and liquids. Easy to install and maintain.
Regular price
$399.99
Regular price
Sale price
$399.99
Unit price
per
Initiate Order
T Series Tramp Iron Trap Tank Filter
$399.99
Quantity: 1
Claim Your Seller Account
T Series Tramp Iron Trap Tank Filter
$399.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

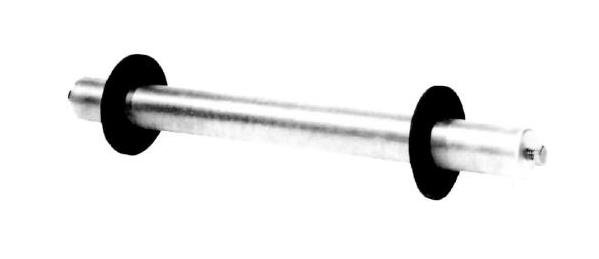

The T Series Tramp Iron Trap Tank Filter is a high-performance filtration system designed to capture particles of iron in sand, grain, foods, or liquids. Featuring a powerful permanent magnet with a length of 52 3/4 inches and a tube diameter of 1 1/8 inches, this filter ensures efficient removal of ferrous contaminants. The housing is made of durable aluminum, with options for Alnico or Neodymium magnets. Easy to install and requiring minimal maintenance, this filter is ideal for community tank applications where maintaining clean coolant is essential to prevent damage to tools and increase production efficiency.
Product Specifications
Additional Information 0

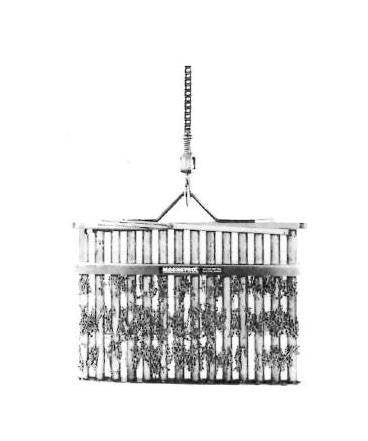

Community Tank FiltersEngineered to fit the Job.Have only clean coolant flowing to the work area. Our engineers are available to help you.In large community coolant tanks, heavy chips will sink to the bottom and remain there, but lighter chips, filings and grindings will stay in suspension, returning to the work area. They often cause costly damage to tools and workpiece.Magnetool filters trap all steel and iron particles passing through the coolant tank, reduce wear in coolant pumps, extend tool life in multiple cuffing and drilling operations, save down-time, increase production.This Magnetool magnetic filter is used in a community coolant tank serving a battery of machines. It has eliminated broken tools and saved many production hours. To clean, it is lifted from the tank; stainless steel tubes encasing the magnets are disengaged chips fall off.
Manufacturing Notes 0
Housing Material: Standard housing is aluminum. Stainless Steel available on special request.
Specifications Available Magnet
Alnico | Neodymium
Specifications Features
Easy to install | Load simply drops off | Requires no maintainance
Specifications Magnet Length
52 3/4 in
Specifications Overall Length
56 3/4 in
Specifications Standard Housing Material
Aluminum
Specifications Standard Magnet
Ceramic
Specifications Tube Diameter
1 1/8 in
Applications 0

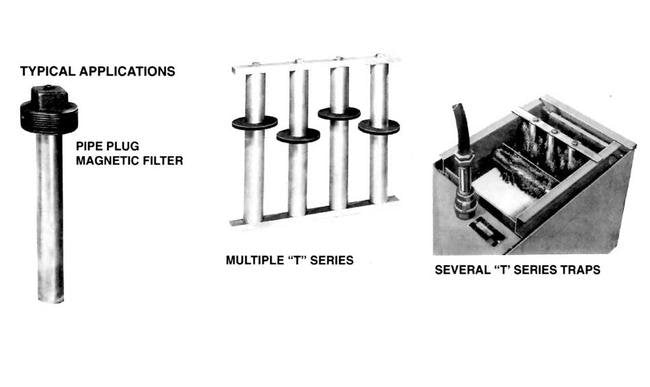

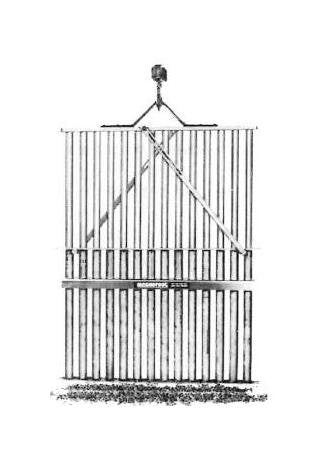

Pipe Plug Magnetic FilterDesigned to fit into the reservoir of a hydraulic fluid system. Can be made any length, any magnetic strength to fit your needs. Clean by wiping with waste, cloth or paper towel.Multiple "T" SeriesAssembled into a grate can be used in a chute or hopper to remove ferrous contaminants from sand, grain, dry foods and crushed or powdered materials.Several "T" Series TrapsMay be attached to a bar and suspended in a tank of flowing liquid. Where desirable, traps may be mounted horizontally.
