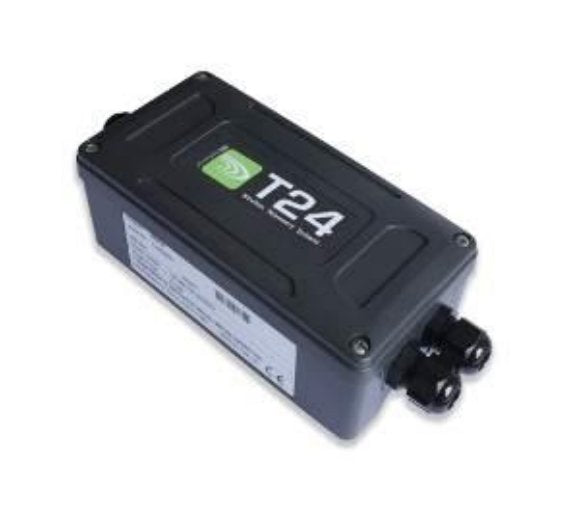

The T24 Wireless Force Sensor Transmitter Module is designed to seamlessly connect to Strainsert sensors, providing strain excitation, signal measurement, ADC conversion, and data transmission over a wireless range of up to 800m. With options for internal batteries or external power, this module offers precise specifications including 4-wire bridge measurement, stability with temperature and time, high internal resolution, and various power supply voltage ranges. Measuring at 164mm x 84mm x 57mm and environmentally rated with IP67 protection, it ensures reliable performance even in demanding conditions.
Product Specifications
Specifications Battery Life Expectancy 2 Aa Cells Low Power Mode
3 weeks (Constantly on) / 2 years (12 sessions/day at 5 minutes per session)
Specifications Battery Life Expectancy 2 D Cells Low Power Mode
3.5 months (Constantly on) / 5 years (12 sessions/day at 5 minutes per session)
Specifications Bridge Excitation Voltage
4.5 to 5.25 (5 typical) VDC
Specifications Bridge Measurement
4-wire
Specifications Bridge Resistance
85 to 5000 (350, typical) Ohms
Specifications Bridge Sensitivity
-3 to 3 (2.5, typical) mV/V
Specifications Internal Resolution
16 Million
Specifications Noise Free Where Sample Time 1000ms
400,000 counts/divisions
Specifications Noise Free Where Sample Time 100ms
150,000 counts/divisions
Specifications Noise Free Where Sample Time 10ms
50,000 counts/divisions
Specifications Noise Free Where Sample Time 50ms
65,000 counts/divisions
Specifications Non Linearity Before Linearization
25, maximum (5, typical) ppm/F.R.
Specifications Power Supply Current
65, maximum (60, typical max. with 1000 Ohm Bridge) mA
Specifications Power Supply Ripple
50, maximum mVAC PK-to-PK
Specifications Power Supply Voltage
2.1 to 3.6 (3, recommended) VDC / 5 to 18 (T24-ACM on optional external power)
Specifications Stability With Temperature Gain
3 to 5 ppm/°C (1.7 to 2.8ppm/°F)
Specifications Stability With Temperature Offset
1 to 4 ppm/°C (0.6 to 2.2ppm/°F)
Specifications Stability With Time Gain
30, maximum (first year) ppm/F.R.
Specifications Stability With Time Offset
80, maximum (20, typical) ppm/F.R.
Specifications Standbylow Power Mode
20, maximum (5, typical) µA
