T24 Wireless Transmitters Kit
T24 Wireless Transmitters Kit
SKU:WIR-08ebcb
Cutting-edge T24 Wireless Transmitters with 800m range, internal batteries, and exceptional accuracy. Ideal for diverse applications.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
T24 Wireless Transmitters Kit
$249.99
Quantity: 1
Claim Your Seller Account
T24 Wireless Transmitters Kit
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

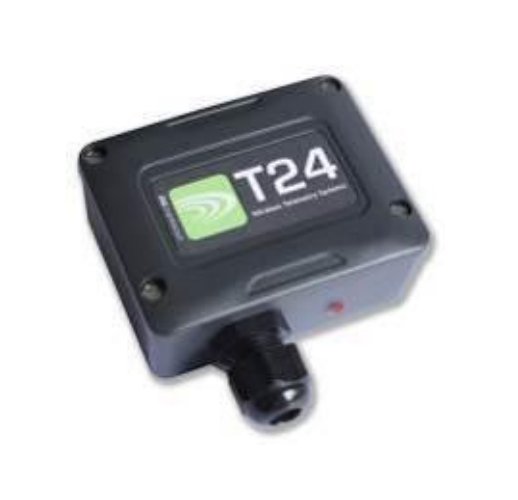

The T24 Wireless Transmitters Kit is a cutting-edge solution for seamless data transmission in sensor applications. These modules boast a wireless range of up to 800m, equipped with internal batteries for reliability. With precise specifications like Bridge Measurement, Stability with Temperature, and Noise Free capabilities, these transmitters ensure accurate readings. Their compact design and IP67 rating make them ideal for various environments, meeting stringent institutional procurement standards.
Product Specifications
Specifications Battery Life Expectancy 2 Aa Cells Low Power Mode
3 weeks (Constantly on) / 2 years (12 sessions/day at 5 minutes per session)
Specifications Battery Life Expectancy 2 D Cells Low Power Mode
3.5 months (Constantly on) / 5 years (12 sessions/day at 5 minutes per session)
Specifications Bridge Excitation Voltage
4.5 to 5.25 (5 typical) VDC
Specifications Bridge Measurement
4-wire
Specifications Bridge Resistance
85 to 5000 (350, typical) Ohms
Specifications Bridge Sensitivity
-3 to 3 (2.5, typical) mV/V
Specifications Internal Resolution
16 Million
Specifications Noise Free Where Sample Time 1000ms
400,000 counts/divisions
Specifications Noise Free Where Sample Time 100ms
150,000 counts/divisions
Specifications Noise Free Where Sample Time 10ms
50,000 counts/divisions
Specifications Noise Free Where Sample Time 50ms
65,000 counts/divisions
Specifications Non Linearity Before Linearization
25, maximum (5, typical) ppm/F.R.
Specifications Power Supply Current
65, maximum (60, typical max. with 1000 Ohm Bridge) mA
Specifications Power Supply Ripple
50, maximum mVAC PK-to-PK
Specifications Power Supply Voltage
2.1 to 3.6 (3, recommended) VDC / 5 to 18 (T24-ACM on optional external power)
Specifications Stability With Temperature Gain
3 to 5 ppm/°C (1.7 to 2.8ppm/°F)
Specifications Stability With Temperature Offset
1 to 4 ppm/°C (0.6 to 2.2ppm/°F)
Specifications Stability With Time Gain
30, maximum (first year) ppm/F.R.
Specifications Stability With Time Offset
80, maximum (20, typical) ppm/F.R.
Specifications Standbylow Power Mode
20, maximum (5, typical) µA
