T302/304 Stainless Steel Sheet - 0.0040 Inch Thickness

Name: T302/304 Stainless Steel Sheet - 0.0040 Inch Thickness
Brand: Thin Metal Sales, Inc.
SKU: T30-a0833c
Price: 25.99 USD
Availability: OutOfStock

SKU:T30-a0833c

Durable T302/304 stainless steel sheet - 0.0040 in thickness, ASTM-A-240, AMS-5513 compliant

$25.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Meet your project's stainless steel needs with this T302/304 stainless steel sheet. Featuring a precise thickness of 0.0040 inches, this alloy offers excellent durability, high tensile strength, and corrosion resistance. Compliant with ASTM-A-240, ASTM-A-666, and AMS-5513 standards, it ensures quality and reliability for diverse applications.

Product Specifications

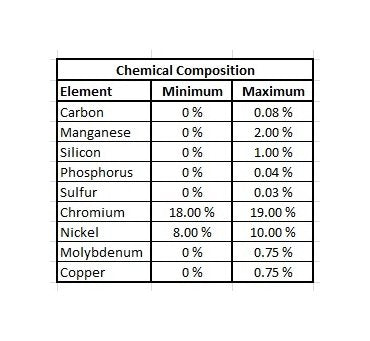

Composition Maximum Carbon Composition

0.08 %

Composition Maximum Chromium Composition

19 %

Composition Maximum Copper Composition

0.75 %

Composition Maximum Manganese Composition

2.00 %

Composition Maximum Molybdenum Composition

0.75 %

Composition Maximum Nickel Composition

10 %

Composition Maximum Phosphorus Composition

0.04 %

Composition Maximum Silicon Composition

1.00 %

Composition Maximum Sulfur Composition

0.03 %

Physical Properties Maximum Hardness

92 Rockwell B

Physical Properties Minimum Elongation In 2 Inch In 0002 To 0003

30 %

Physical Properties Minimum Elongation In 2 Inch In 0003 To 0004

35 %

Physical Properties Minimum Elongation In 2 Inch In Over 0004 In

40 %

Physical Properties Minimum Tensile Strength

75 ksi

Physical Properties Minimum Yield Strength 02 Percent Offset

30 ksi

Specifications Alloy

T302/304 Stainless Steel Alloy

Specifications Alloy Steel Type

Stainless Steel

Specifications Ams Standard

AMS-5513 | AMS-5516

Specifications Astm Steel Standard

ASTM-A-240 | ASTM-A-666

Specifications Length

Custom

Specifications Temper

Annealed Temper

Specifications Thickness

0.0040 in

Specifications Thickness Tolerance

5 %

Specifications Width

Custom
