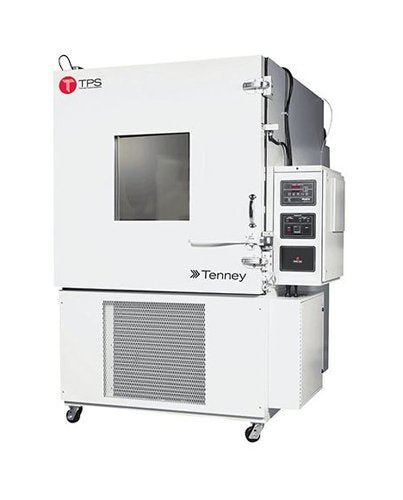

T30S, Tenney Classic Series Wide-Range Test Chamber
T30S, Tenney Classic Series Wide-Range Test Chamber
SKU:TEN-47b1d6
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
T30S, Tenney Classic Series Wide-Range Test Chamber
$49.99
Quantity: 1
Claim Your Seller Account
T30S, Tenney Classic Series Wide-Range Test Chamber
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Tenney Classic Series of temperature and humidity test chambers deploys environmentally friendly technology that uses CFC-free refrigerants. The time-proven mechanical refrigeration systems are available in single or cascade systems and allow for years of worry-free use.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Capacity
30 ft³
Specifications Current
34 A
Specifications Empty Chamber Temperature Change Time From Ambien
25 min
Specifications Exterior Depth
64 in | 1625 mm
Specifications Exterior Height
84 in | 2134 mm
Specifications Exterior Width
46 in | 1168 mm
Specifications Features
Semi-hermetic refrigeration system | Vertical recirculation conditioning system | Automatic defrost for door gaskets | Control tolerance between ±0.3°C and ±2% RH typical after stabilization | Non-corroding parts on all humidity capable units | Low water protection
Specifications Fuse Current At 208 203 Volts V 1 Phase 60 Hertz
45 A
Specifications Heat Capacity
2.5 kW
Specifications Humidifier Capacity
2 kW | 1 gph
Specifications Live Load At 10c
600 W
Specifications Live Load At 18c
500 W
Specifications Live Load At 40c
250 W
Specifications Maximum Temperature
200 ºC
Specifications Minimum Temperature
-40 ºC
Specifications Options
6-event relay board at 1 amp each | Alternate power supply wiring | Automatic CO2 or LN2 cooling boost system | External dryer for obtaining humidity as low as 5% (to 20°C) | GN2 purge system | IEEE interface | LinkTenn software for Windows® | Recirculating system for humidity water | Recording instruments | Redundant thermal protection and alarm system | Refrigeration taps and pressure gauges | Remote console for instrumentation | RS-422, 423, 232 or 485 interface assemblies | Water demineralizer | Water reservoir for humidity system (5 gallon) | Water-cooled refrigeration system
Specifications Phase
1
Specifications Refrigeration
2 hp
Specifications Voltage
230 V
Specifications Weight
1500 lb
Specifications Workspace Depth
40 in | 1016 mm
Specifications Workspace Height
36 in | 914 mm
Specifications Workspace Width
36 in | 914 mm
