T316 Stainless Steel Sheet - 0.0050in Thickness, Annealed Temper

Name: T316 Stainless Steel Sheet - 0.0050in Thickness, Annealed Temper
Brand: Thin Metal Sales, Inc.
SKU: T31-d10ec7
Price: 45.99 USD
Availability: OutOfStock

SKU:T31-d10ec7

Premium T316 SS Sheet - Custom Size, ASTM-A-240 & AMS Compliant

$45.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Upgrade your projects with our T316 Alloy Annealed Temper Stainless Steel Sheet. Featuring custom width and length options, this sheet meets ASTM-A-240 and AMS standards. With maximum hardness of 95 Rockwell B and minimum tensile strength of 75 ksi, it offers exceptional durability. The composition includes 18% chromium and 14% nickel for superior corrosion resistance. Ideal for various applications, compliant with industry standards.

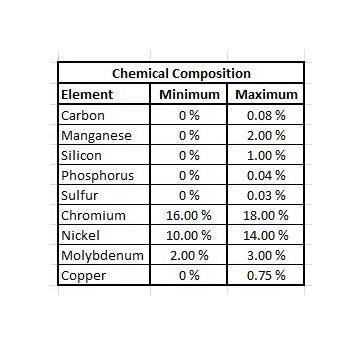

Product Specifications

Composition Maximum Carbon Composition

0.08 %

Composition Maximum Chromium Composition

18 %

Composition Maximum Copper Composition

0.75 %

Composition Maximum Manganese Composition

2.00 %

Composition Maximum Molybdenum Composition

3 %

Composition Maximum Nickel Composition

14 %

Composition Maximum Phosphorus Composition

0.04 %

Composition Maximum Silicon Composition

1.00 %

Composition Maximum Sulfur Composition

0.03 %

Physical Properties Maximum Hardness

95 Rockwell B

Physical Properties Minimum Elongation In 2 Inch In Over To 0025

45 %

Physical Properties Minimum Elongation In 2 Inch In Up To 00250

40 %

Physical Properties Minimum Tensile Strength

75 ksi

Physical Properties Minimum Yield Strength 02 Percent Offset

30 ksi

Specifications Alloy

T316 Stainless Steel Alloy

Specifications Alloy Steel Type

Stainless Steel

Specifications Ams Standard

AMS-5507 | AMS-5524

Specifications Astm Steel Standard

ASTM-A-240

Specifications Length

Custom

Specifications Temper

Annealed Temper

Specifications Thickness

0.0050 in

Specifications Thickness Tolerance

5 %

Specifications Width

Custom

T316 Stainless Steel Sheet - 0.0050in Thickness, Annealed Temper
