T316 Stainless Steel Sheet - 0.0060 in Thickness, Annealed Temper

Name: T316 Stainless Steel Sheet - 0.0060 in Thickness, Annealed Temper
Brand: Thin Metal Sales, Inc.
SKU: T31-4f8765
Price: 29.99 USD
Availability: OutOfStock

SKU:T31-4f8765

High-quality T316 Stainless Steel Sheet - 0.0060 in. thickness. ASTM-A-240 compliant, perfect for precise applications.

$29.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

Ideal for precise applications, this T316 stainless steel sheet features a thickness of 0.0060 in, meeting ASTM-A-240 standards. With a maximum hardness of 95 Rockwell B and minimum tensile strength of 75 ksi, it ensures reliable performance. The composition includes 18% Chromium and 14% Nickel, offering corrosion resistance. Compliant with AMS-5507 and AMS-5524, it is suitable for government and institutional use.

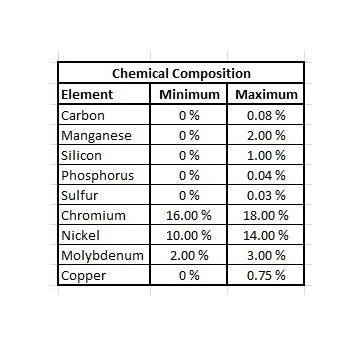

Product Specifications

Composition Maximum Carbon Composition

0.08 %

Composition Maximum Chromium Composition

18 %

Composition Maximum Copper Composition

0.75 %

Composition Maximum Manganese Composition

2.00 %

Composition Maximum Molybdenum Composition

3 %

Composition Maximum Nickel Composition

14 %

Composition Maximum Phosphorus Composition

0.04 %

Composition Maximum Silicon Composition

1.00 %

Composition Maximum Sulfur Composition

0.03 %

Physical Properties Maximum Hardness

95 Rockwell B

Physical Properties Minimum Elongation In 2 Inch In Over To 0025

45 %

Physical Properties Minimum Elongation In 2 Inch In Up To 00250

40 %

Physical Properties Minimum Tensile Strength

75 ksi

Physical Properties Minimum Yield Strength 02 Percent Offset

30 ksi

Specifications Alloy

T316 Stainless Steel Alloy

Specifications Alloy Steel Type

Stainless Steel

Specifications Ams Standard

AMS-5507 | AMS-5524

Specifications Astm Steel Standard

ASTM-A-240

Specifications Length

Custom

Specifications Temper

Annealed Temper

Specifications Thickness

0.0060 in

Specifications Thickness Tolerance

5 %

Specifications Width

Custom

T316 Stainless Steel Sheet - 0.0060 in Thickness, Annealed Temper
