T316 Stainless Steel Sheet, 0.0200 in Thickness, Annealed Temper

Name: T316 Stainless Steel Sheet, 0.0200 in Thickness, Annealed Temper
Brand: Thin Metal Sales, Inc.
SKU: T31-86109d
Price: 49.99 USD
Availability: OutOfStock

SKU:T31-86109d

High-quality T316 Stainless Steel Sheet, 0.020 in thick, ASTM-A-240 & AMS compliant

$49.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The T316 Alloy Annealed Temper Stainless Steel Sheet offers maximum reliability with a thickness of 0.0200 inches. Compliant with ASTM-A-240 and AMS standards, it boasts a high tensile strength of 75 ksi and a minimum yield strength of 30 ksi. With a chromium composition of 18% and nickel content of 14%, this sheet guarantees durability and longevity. Ideal for various applications requiring precision and resilience.

Product Specifications

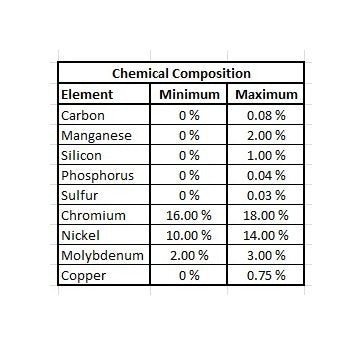

Composition Maximum Carbon Composition

0.08 %

Composition Maximum Chromium Composition

18 %

Composition Maximum Copper Composition

0.75 %

Composition Maximum Manganese Composition

2.00 %

Composition Maximum Molybdenum Composition

3 %

Composition Maximum Nickel Composition

14 %

Composition Maximum Phosphorus Composition

0.04 %

Composition Maximum Silicon Composition

1.00 %

Composition Maximum Sulfur Composition

0.03 %

Physical Properties Maximum Hardness

95 Rockwell B

Physical Properties Minimum Elongation In 2 Inch In Over To 0025

45 %

Physical Properties Minimum Elongation In 2 Inch In Up To 00250

40 %

Physical Properties Minimum Tensile Strength

75 ksi

Physical Properties Minimum Yield Strength 02 Percent Offset

30 ksi

Specifications Alloy

T316 Stainless Steel Alloy

Specifications Alloy Steel Type

Stainless Steel

Specifications Ams Standard

AMS-5507 | AMS-5524

Specifications Astm Steel Standard

ASTM-A-240

Specifications Length

Custom

Specifications Temper

Annealed Temper

Specifications Thickness

0.0200 in

Specifications Thickness Tolerance

0.0010 in

Specifications Width

Custom

T316 Stainless Steel Sheet, 0.0200 in Thickness, Annealed Temper
