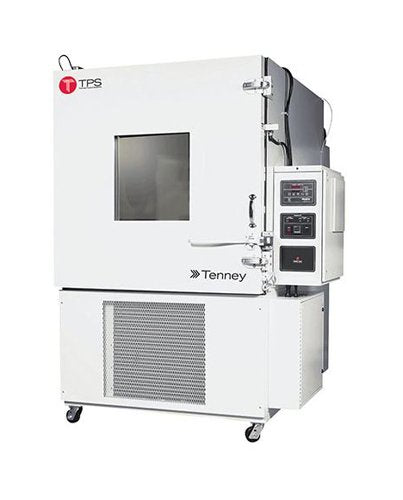

T40RS-2, Tenney Classic Series Wide-Range Test Chamber
T40RS-2, Tenney Classic Series Wide-Range Test Chamber
SKU:TEN-ad1c36
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
T40RS-2, Tenney Classic Series Wide-Range Test Chamber
$49.99
Quantity: 1
Claim Your Seller Account
T40RS-2, Tenney Classic Series Wide-Range Test Chamber
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Tenney Classic Series of temperature and humidity test chambers deploys environmentally friendly technology that uses CFC-free refrigerants. The time-proven mechanical refrigeration systems are available in single or cascade systems and allow for years of worry-free use.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Capacity
40 ft³
Specifications Current
50 A
Specifications Empty Chamber Temperature Change Time From Ambien
10 min
Specifications Exterior Depth
73.5 in | 1867 mm
Specifications Exterior Height
80.25 in | 2038 mm
Specifications Exterior Width
66 in | 1676 mm
Specifications Features
Semi-hermetic refrigeration system | Vertical recirculation conditioning system | Automatic defrost for door gaskets | Control tolerance between ±0.3°C and ±2% RH typical after stabilization | Non-corroding parts on all humidity capable units | Low water protection
Specifications Fuse Current At 208 203 Volts V 1 Phase 60 Hertz
60 A
Specifications Heat Capacity
6 kW
Specifications Humidifier Capacity
2 kW | 1 gph
Specifications Live Load At 18c
1000 W
Specifications Live Load At 40c
100 W
Specifications Maximum Temperature
200 ºC
Specifications Minimum Temperature
-40 ºC
Specifications Options
6-event relay board at 1 amp each | Alternate power supply wiring | Automatic CO2 or LN2 cooling boost system | External dryer for obtaining humidity as low as 5% (to 20°C) | GN2 purge system | IEEE interface | LinkTenn software for Windows® | Recirculating system for humidity water | Recording instruments | Redundant thermal protection and alarm system | Refrigeration taps and pressure gauges | Remote console for instrumentation | RS-422, 423, 232 or 485 interface assemblies | Water demineralizer | Water reservoir for humidity system (5 gallon) | Water-cooled refrigeration system
Specifications Phase
1
Specifications Refrigeration
2 hp
Specifications Voltage
230 V
Specifications Weight
2750 lb | 2800 lb
Specifications Workspace Depth
44 in | 1118 mm
Specifications Workspace Height
40 in | 1016 mm
Specifications Workspace Width
40 in | 1016 mm
