Gruenberg Oven Company designs and manufactures a complete line of standard and custom truck-in industrial ovens to accommodate a variety of thermal processing applications up to 1200°F. Our industrial truck-in ovens are ideally suited for powder coating, drum heating, aging, core hardening, drying, preheating, curing, and component testing. With additional options, these truck-in industrial ovens can also be used for applications such as paint baking, plastic curing, varnish baking, sterilizing, and rubber and epoxy curing.
Product Specifications
Specifications Air Flow
Horizontal
Specifications Circulation
1800 CFM
Specifications Exterior Depth
50 in
Specifications Exterior Height
92 in
Specifications Exterior Width
66 in
Specifications Features
Heavy-duty, fully welded structural steel frame | CHIL construction ensures minimal heat transfer from oven chamber to the exterior | Removable side and back walls for easy clean-up and maintenance | Lid is constructed using a structural steel frame to ensure sealing integrity | Insulation is moisture-proof, non-combustible, non-settling, and asbestos-free | Energy-efficient, Incoloy® sheathed, seamless tubular heaters | Heating elements are suspended in the plenum, which is adjacent to the process chamber so there is no radiant influence on the work in process
Specifications Heater Wattage
18 kW
Specifications Insulation Thickness Inches
4-low
Specifications Interior Depth
36 in
Specifications Interior Height
48 in
Specifications Interior Volume
36 ft³
Specifications Interior Width
36 in
Specifications Loading Trucks For Gruenberg Truck In Ovens

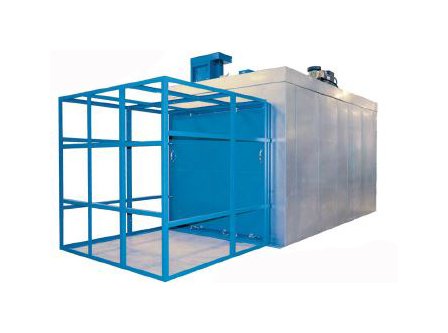

Gruenberg has a complete line of standard trucks specially designed to work with our industrial truck in ovens.
Specifications Maximum Temperature
450 ºF
Specifications Shipping Weight
1450 lb
