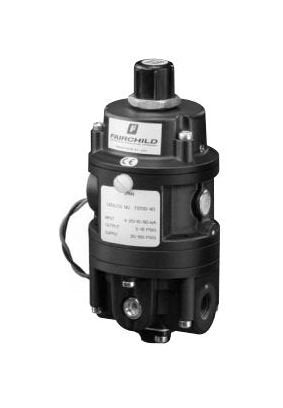

T5700 Electro-Pneumatic Transducer
T5700 Electro-Pneumatic Transducer
SKU:ELE-f006c6
High-performance T5700 Electro-Pneumatic Transducer for precise pressure control in industrial applications.
Regular price
$249.99
Regular price
Sale price
$249.99
Unit price
per
Initiate Order
T5700 Electro-Pneumatic Transducer
$249.99
Quantity: 1
Claim Your Seller Account
T5700 Electro-Pneumatic Transducer
$249.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The T5700 Electro-Pneumatic Transducer is an advanced component designed for precise pressure control in industrial applications. With a maximum flow capacity of 47 ft³/min and output pressure ranging from 3 to 15 psig, this transducer ensures accurate and reliable performance. It meets European Conformity (CE) standards, guaranteeing quality and safety. The compact design, with a diameter of 3 inches and height of 6-1/2 inches, makes it easy to integrate into existing systems, ideal for both consumer and institutional buyers.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Dc Voltage Supply
10 to 950 mA | 41 to 250 mA
Specifications Diameter
3 in | 76 mm
Specifications Exhaust Capacity
15.3 m³/h
Specifications Full Scale Fs Accuracy
0.5 %
Specifications Full Scale Fs Repeatability
<0.1 %
Specifications Height
6-1/2 in | 165 mm
Specifications Maximum Air Consumption
3 ft³/min | 0.08 m³/h
Specifications Maximum Flow Capacity At Supply Of 120 Pounds Per
47 ft³/min | 79.9 m³/h
Specifications Output Pressure
3 to 15 psig | 20 to 100 kPa
Specifications Pipe Size
1/4
Specifications Pressure Supply
18 to 150 psig | 120 to 1000 kPa
Specifications Underwriting Group Approvals
European Conformity (CE)
