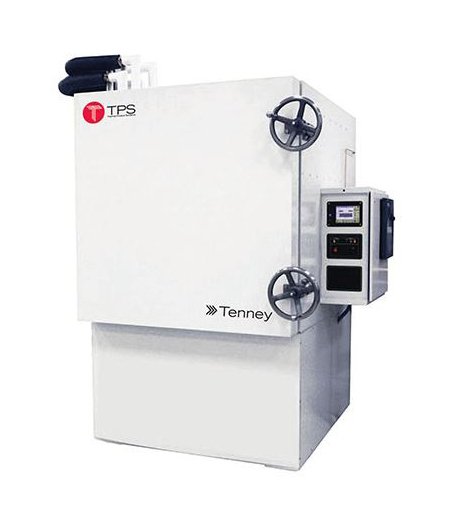

T5ST, Tenney Strat Altitude Chamber
T5ST, Tenney Strat Altitude Chamber
SKU:TEN-caa81f
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
T5ST, Tenney Strat Altitude Chamber
$49.99
Quantity: 1
Claim Your Seller Account
T5ST, Tenney Strat Altitude Chamber
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Tenney’s Tenney Strat Altitude Chambers simulate altitudes up to 200,000 feet. With an overall temperature range of -70°C to +177°C, humidity capabilities of 20% to 98% RH, and workspace sizes ranging from 5- to 64-cubic-feet, this highly developed line of altitude chambers offers one of the broadest selections in the industry. We are confident that our solid altitude chamber construction and precise operating systems will provide the exacting performance and a high degree of reliability for your altitude testing needs.
Product Specifications
Specifications Current
33 A
Specifications Exterior Depth
152 in | 63 in | 1600 mm | 3860 mm
Specifications Exterior Height
78 in | 183 in | 1981 mm | 4648 mm
Specifications Exterior Width
25 in | 51 in | 1295 mm | 635 mm
Specifications Features
Continuously welded, stainless steel, vapor-tight interior liners | Control tolerance is ±0.3°C and ±2% RH typical after stabilization | Linear pressure transducer to measure altitude | Non-corroding humidity system | Low-water protection on humidity system | Vertical-down recirculating conditioning stream
Specifications Fuse Current
45 A
Specifications Heater Capacity
2
Specifications Humidifier
1 W | 0.5 gph
Specifications System Horsepower
4 hp
Specifications Voltage
230 V
Specifications Weight
1300 lb | 590 kg
Specifications Workspace Depth
21 in | 53 in | 533 mm | 1346 mm
Specifications Workspace Height
25 in | 51 in | 635 mm | 1295 mm
Specifications Workspace Width
21 in | 53 in | 533 mm | 1346 mm
