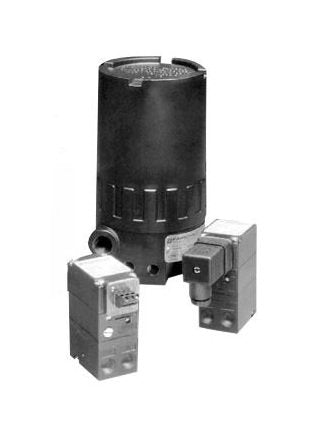

T6000 Electro-Pneumatic Transducer for Industrial Control Systems

Name: T6000 Electro-Pneumatic Transducer for Industrial Control Systems
Brand: B & B Instruments, Inc.
SKU: ELE-7b53a0
Price: 349.99 USD
Availability: OutOfStock

SKU:ELE-7b53a0

Enhance control accuracy with the T6000 Electro-Pneumatic Transducer for industrial applications. Reliable performance guaranteed.

$349.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The T6000 Electro-Pneumatic Transducer is a high-performance device designed for precise control in industrial applications. With a maximum flow capacity of 9 ft³/min, output pressure range of 0 to 120 psig, and full-scale accuracy of 0.5%, it ensures reliable operation. This transducer's compact design, underwriting group approvals, and compatibility with various pressure supplies and DC voltage inputs make it ideal for institutional and government procurement needs.

Product Specifications

Specifications Dc Voltage Supply

0 to 5 V | 0 to 10 V | 1 to 5 V | 1 to 9 V | 4 to 20 mA | 10 to 50 mA

Specifications Dimensions

1-1/2 x 3-1/8 x 3-3/4 in | 38 x 79 x 95 mm

Specifications Exhaust Capacity

3.4 mÂ³/h

Specifications Full Scale Fs Accuracy

0.5 to 1.0 %

Specifications Full Scale Fs Repeatability

0.25 to <0.1 %

Specifications Maximum Air Consumption

5.0 to 17.0 ftÂ³/min | 0.14 to 0.48 mÂ³/h

Specifications Maximum Flow Capacity At Supply Of 120 Pounds Per

9 ftÂ³/min | 15.3 mÂ³/h

Specifications Output Pressure

0 to 120 psig | 3 to 15 psig | 0 to 800 kPa | 20 to 100 kPa

Specifications Pipe Size

1/4

Specifications Pressure Supply

20 to 150 psig | 150 to 1000 kPa

Specifications Underwriting Group Approvals

C | E | European Conformity (CE) | F

T6000 Electro-Pneumatic Transducer for Industrial Control Systems
