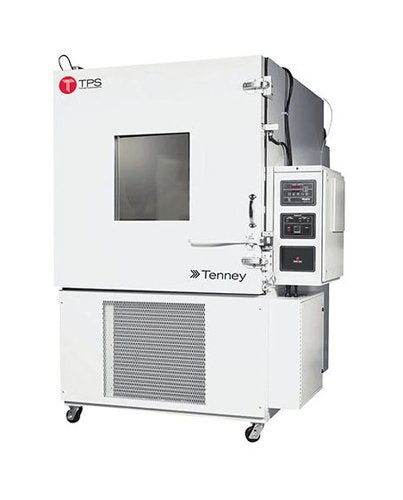

T64RS-7.5, Tenney Classic Series Wide-Range Test Chamber
T64RS-7.5, Tenney Classic Series Wide-Range Test Chamber
SKU:TEN-e73a59
N/A
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
T64RS-7.5, Tenney Classic Series Wide-Range Test Chamber
$49.99
Quantity: 1
Claim Your Seller Account
T64RS-7.5, Tenney Classic Series Wide-Range Test Chamber
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Tenney Classic Series of temperature and humidity test chambers deploys environmentally friendly technology that uses CFC-free refrigerants. The time-proven mechanical refrigeration systems are available in single or cascade systems and allow for years of worry-free use.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Capacity
64 ft³
Specifications Current
80 A
Specifications Empty Chamber Temperature Change Time From Ambien
15 min
Specifications Exterior Depth
81.5 in | 2070 mm
Specifications Exterior Height
91 in | 2311 mm
Specifications Exterior Width
72 in | 1829 mm
Specifications Features
Semi-hermetic refrigeration system | Vertical recirculation conditioning system | Automatic defrost for door gaskets | Control tolerance between ±0.3°C and ±2% RH typical after stabilization | Non-corroding parts on all humidity capable units | Low water protection
Specifications Fuse Current At 208 203 Volts V 1 Phase 60 Hertz
110 A
Specifications Heat Capacity
8 kW
Specifications Humidifier Capacity
2 kW | 1 gph
Specifications Live Load At 18c
4500 W
Specifications Live Load At 40c
1000 W
Specifications Maximum Temperature
200 ºC
Specifications Minimum Temperature
-40 ºC
Specifications Options
6-event relay board at 1 amp each | Alternate power supply wiring | Automatic CO2 or LN2 cooling boost system | External dryer for obtaining humidity as low as 5% (to 20°C) | GN2 purge system | IEEE interface | LinkTenn software for Windows® | Recirculating system for humidity water | Recording instruments | Redundant thermal protection and alarm system | Refrigeration taps and pressure gauges | Remote console for instrumentation | RS-422, 423, 232 or 485 interface assemblies | Water demineralizer | Water reservoir for humidity system (5 gallon) | Water-cooled refrigeration system
Specifications Phase
3
Specifications Refrigeration
7.5 hp
Specifications Voltage
230 V
Specifications Weight
3540 lb
Specifications Workspace Depth
48 in | 1219 mm
Specifications Workspace Height
48 in | 1219 mm
Specifications Workspace Width
48 in | 1219 mm
