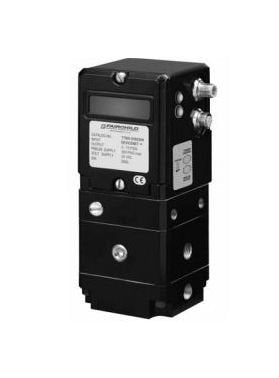

The T7900 Electro-Pneumatic Transducer is a high-performance instrument designed for precise pressure control applications. With a maximum flow capacity of 100 ft³/min and a wide range of output pressure options from 0 to 150 psig, this transducer offers exceptional accuracy (±0.5%) and repeatability (<0.1%). Its compact dimensions of 3 x 3-1/8 x 7-3/4 inches make it ideal for space-constrained installations. The T7900 is European Conformity (CE) approved, ensuring compliance with stringent quality and safety standards.
Product Specifications
Specifications Dc Voltage Supply
0 to 10 V | 4 to 20 mA
Specifications Dimensions
3 x 3-1/8 x 7-3/4 in | 76 x 79 x 197 mm
Specifications Exhaust Capacity
85 m³/h
Specifications Full Scale Fs Accuracy
0.5 %
Specifications Full Scale Fs Repeatability
<0.1 %
Specifications Maximum Air Consumption At Steady State
0 ft³/min | 0 m³/h
Specifications Maximum Flow Capacity At Supply Of 100 Pounds Per
100 ft³/min | 17.0 m³/h
Specifications Maximum Pressure Supply
200 psig | 1400 kPa
Specifications Output Pressure
0 to 30 psig | 0 to 75 psig | 0 to 150 psig | 0 to 200 kPa | 0 to 500 kPa | 0 to 1000 kPa
Specifications Pipe Size
1/2 | 1/4 | 3/8
Specifications Underwriting Group Approvals
European Conformity (CE)
