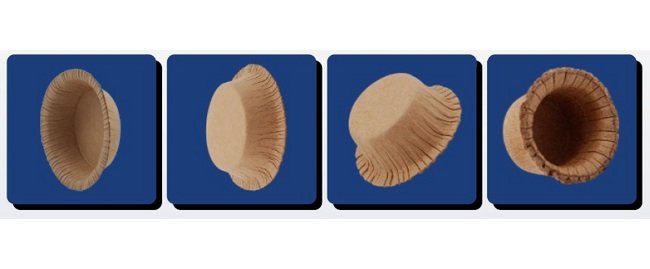

  • Tan Paper Tapered Plug for 1" NPT Threads - Image 3
1 3
MOCAP LLC →

Tan Paper Tapered Plug for 1" NPT Threads

Tan Paper Tapered Plug for 1" NPT Threads

TAP-b61e33

Sustainable Tan Paper Tapered Plug for 1" NPT Threads, heat-resistant up to 400°F, RoHS compliant.

$49.99
$49.99
Sale

Initiate Order

Tan Paper Tapered Plug for 1" NPT Threads

Tan Paper Tapered Plug for 1" NPT Threads

$49.99

Quantity: 1

Claim Your Seller Account

Tan Paper Tapered Plug for 1" NPT Threads

Tan Paper Tapered Plug for 1" NPT Threads

$49.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Tan Paper Tapered Plug is a sustainable and cost-effective masking solution designed for temperature-sensitive applications. Crafted from recyclable paper, these plugs resist condensation and endure temperatures of up to 400°F (204°C). Ideal for NPT threads ranging from 1/8 to 3 inches, this environmentally conscious plug guarantees a secure fit and reliable performance. In addition, it meets RoHS standards and is available in convenient quantities for various project needs. Upgrade your masking process with these reliable Tan Paper Tapered Plugs.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Manufacturing Notes 0
Due to the material, these Tapered Paper Plugs may have minor dimensional variation due to changes in relative humidity.MOCAP stocks paper tapered plugs in many sizes for immediate shipment.MOCAP now offers Micro-Pack and Mini-Pack quantities when less than case quantities are what you really need.Micro-Packs are only available online.Tolerances: Part dimensions are typical from a measured lot. Individual pieces may vary.Due to the material, this product may have minor dimensional variation due to changes in relative humidity.Flange concentricity may vary.Due to papers natural structure, the product may be oblong in free state. This will generally aid in the products retention capability.
Specifications Applications
Masking
Specifications Box Quantity
5000
Specifications Color
Tan
Specifications Flange Outer Diameter Dimension F
1.732 in | 44.0 mm
Specifications Large End Outer Diameter Dimension B
1.437 in | 36.5 mm
Specifications Length Dimension E
0.634 in | 16.1 mm
Specifications Material
Paper
Specifications Micro Pack Quantity
100
Specifications Mini Pack Quantity
1000
Specifications Small End Outer Diameter Dimension A
1.173 in | 29.8 mm
Specifications Standards
RoHS Compliant
Specifications To Fit Female Npt Thread Size
1 in
Specifications Wall Thickness
0.025 in
Specifications Wall Thickness Tolerance
0.002
