Tan Paper Tapered Plug for 3/4 in Female NPT Threads
Tan Paper Tapered Plug for 3/4 in Female NPT Threads
SKU:TAP-aa43c9
Sustainable Tan Paper Tapered Plug for 3/4 in Female NPT Threads - Environmentally friendly, heat-resistant up to 400°F, perfect for industrial masking needs.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Tan Paper Tapered Plug for 3/4 in Female NPT Threads
$29.99
Quantity: 1
Claim Your Seller Account
Tan Paper Tapered Plug for 3/4 in Female NPT Threads
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

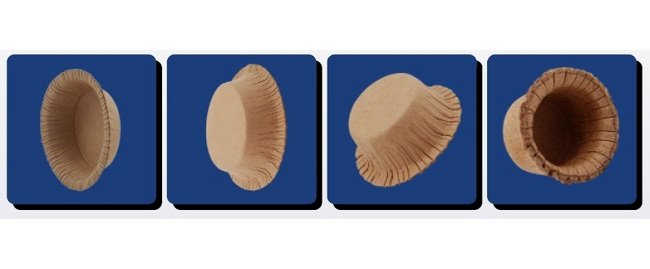

The Tan Paper Tapered Plug is a sustainable and cost-effective masking solution designed for various temperature applications, withstanding up to 400 °F. Made of recyclable paper, this plug is environmentally friendly and does not promote condensation. Ideal for low-to-high temperature masking needs, it fits 3/4 inch female NPT threads, offering precision and reliability for industrial applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Manufacturing Notes 0
Due to the material, these Tapered Paper Plugs may have minor dimensional variation due to changes in relative humidity.MOCAP stocks paper tapered plugs in many sizes for immediate shipment.MOCAP now offers Micro-Pack and Mini-Pack quantities when less than case quantities are what you really need.Micro-Packs are only available online.Tolerances: Part dimensions are typical from a measured lot. Individual pieces may vary.Due to the material, this product may have minor dimensional variation due to changes in relative humidity.Flange concentricity may vary.Due to papers natural structure, the product may be oblong in free state. This will generally aid in the products retention capability.
Specifications Applications
Masking
Specifications Box Quantity
6200
Specifications Color
Tan
Specifications Flange Outer Diameter Dimension F
1.378 in | 35.0 mm
Specifications Large End Outer Diameter Dimension B
1.114 in | 28.3 mm
Specifications Length Dimension E
0.543 in | 13.8 mm
Specifications Material
Paper
Specifications Micro Pack Quantity
100
Specifications Mini Pack Quantity
1000
Specifications Small End Outer Diameter Dimension A
0.917 in | 23.3 mm
Specifications Standards
RoHS Compliant
Specifications To Fit Female Npt Thread Size
3/4 in
Specifications Wall Thickness
0.025 in
Specifications Wall Thickness Tolerance
0.002
