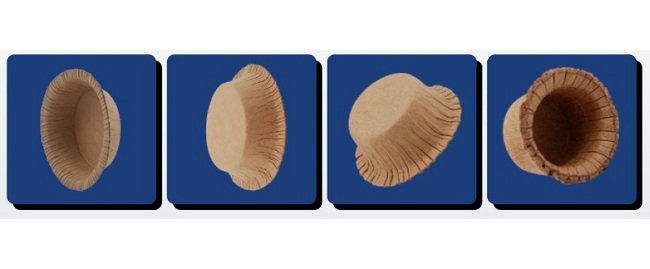

• Tan Paper Tapered Plug for 3/8 in NPT Threads - Image 1
  • Tan Paper Tapered Plug for 3/8 in NPT Threads - Image 2
  • Tan Paper Tapered Plug for 3/8 in NPT Threads - Image 3
1 3
MOCAP LLC →

Tan Paper Tapered Plug for 3/8 in NPT Threads

Tan Paper Tapered Plug for 3/8 in NPT Threads

TAP-a6e275

Eco-friendly Tan Paper Tapered Plug for 3/8 in NPT threads - Ideal for 400°F temp. resistance & masking in diverse applications.

$39.99
$39.99
Sale

Initiate Order

Tan Paper Tapered Plug for 3/8 in NPT Threads

Tan Paper Tapered Plug for 3/8 in NPT Threads

$39.99

Quantity: 1

Claim Your Seller Account

Tan Paper Tapered Plug for 3/8 in NPT Threads

Tan Paper Tapered Plug for 3/8 in NPT Threads

$39.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Tan Paper Tapered Plug is a sustainable, cost-effective masking solution designed for temperature resistance up to 400°F. Manufactured from recyclable paper, this plug is ideal for low-to-high temperature applications. With precise dimensions and RoHS compliance, it fits female NPT thread sizes of 3/8 in, ensuring secure masking in various industrial settings.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Manufacturing Notes 0
Due to the material, these Tapered Paper Plugs may have minor dimensional variation due to changes in relative humidity.MOCAP stocks paper tapered plugs in many sizes for immediate shipment.MOCAP now offers Micro-Pack and Mini-Pack quantities when less than case quantities are what you really need.Micro-Packs are only available online.Tolerances: Part dimensions are typical from a measured lot. Individual pieces may vary.Due to the material, this product may have minor dimensional variation due to changes in relative humidity.Flange concentricity may vary.Due to papers natural structure, the product may be oblong in free state. This will generally aid in the products retention capability.
Specifications Applications
Masking
Specifications Box Quantity
16000
Specifications Color
Tan
Specifications Flange Outer Diameter Dimension F
0.866 in | 22.0 mm
Specifications Large End Outer Diameter Dimension B
0.697 in | 17.7 mm
Specifications Length Dimension E
0.480 in | 12.2 mm
Specifications Material
Paper
Specifications Micro Pack Quantity
100
Specifications Mini Pack Quantity
1000
Specifications Small End Outer Diameter Dimension A
0.579 in | 14.7 mm
Specifications Standards
RoHS Compliant
Specifications To Fit Female Npt Thread Size
3/8 in
Specifications Wall Thickness
0.025 in
Specifications Wall Thickness Tolerance
0.002
