Tan Paper Tapered Plug for Female NPT Threads - 2.5 in
Tan Paper Tapered Plug for Female NPT Threads - 2.5 in
SKU:TAP-550ba1
Eco-friendly Tan Paper Tapered Plug for 2.5 in NPT threads. Resists condensation, withstands up to 400°F. RoHS compliant, ideal for masking applications.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Tan Paper Tapered Plug for Female NPT Threads - 2.5 in
$49.99
Quantity: 1
Claim Your Seller Account
Tan Paper Tapered Plug for Female NPT Threads - 2.5 in
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

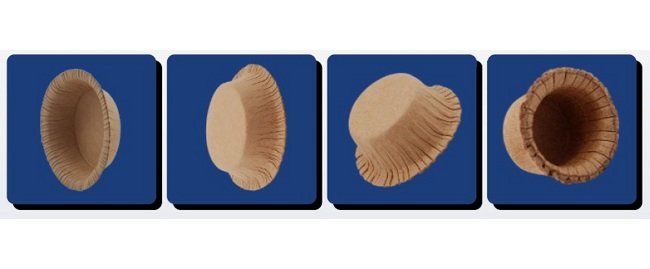

The Tan Paper Tapered Plug is an eco-friendly masking solution designed for temperatures up to 400°F. Made of recyclable paper, it resists condensation and offers precise dimensions for 2.5 in female NPT threads. With RoHS compliance and consistent quality, this plug is ideal for various masking applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Manufacturing Notes 0
Due to the material, these Tapered Paper Plugs may have minor dimensional variation due to changes in relative humidity.MOCAP stocks paper tapered plugs in many sizes for immediate shipment.MOCAP now offers Micro-Pack and Mini-Pack quantities when less than case quantities are what you really need.Micro-Packs are only available online.Tolerances: Part dimensions are typical from a measured lot. Individual pieces may vary.Due to the material, this product may have minor dimensional variation due to changes in relative humidity.Flange concentricity may vary.Due to papers natural structure, the product may be oblong in free state. This will generally aid in the products retention capability.
Specifications Applications
Masking
Specifications Box Quantity
1300
Specifications Color
Tan
Specifications Flange Outer Diameter Dimension F
3.571 in | 90.7 mm
Specifications Large End Outer Diameter Dimension B
3.146 in | 79.9 mm
Specifications Length Dimension E
0.752 in | 19.1 mm
Specifications Material
Paper
Specifications Micro Pack Quantity
26
Specifications Mini Pack Quantity
260
Specifications Small End Outer Diameter Dimension A
2.638 in | 67.0 mm
Specifications Standards
RoHS Compliant
Specifications To Fit Female Npt Thread Size
2.5 in
Specifications Wall Thickness
0.025 in
Specifications Wall Thickness Tolerance
0.002
