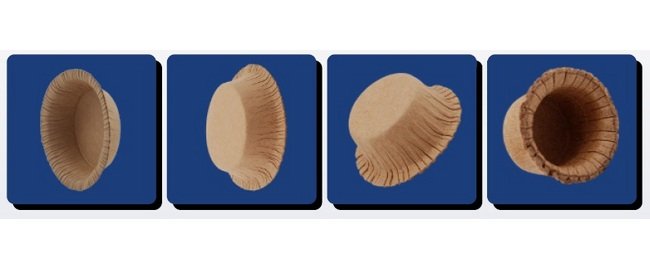

  • Tan Paper Tapered Plugs for NPT Masking - Image 3
1 3
MOCAP LLC →

Tan Paper Tapered Plugs for NPT Masking

Tan Paper Tapered Plugs for NPT Masking

TAP-7bdd59

Eco-friendly Tan Paper Tapered Plugs ideal for masking low-to-high temperature applications. Fit 1/8 to 3 in female NPTs.

$49.99
$49.99
Sale

Initiate Order

Tan Paper Tapered Plugs for NPT Masking

Tan Paper Tapered Plugs for NPT Masking

$49.99

Quantity: 1

Claim Your Seller Account

Tan Paper Tapered Plugs for NPT Masking

Tan Paper Tapered Plugs for NPT Masking

$49.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
MOCAP Tan Paper Tapered Plugs are eco-friendly, economical solutions for masking applications. These plugs, made of recyclable paper, resist condensation and can endure temperatures up to 400 °F. Ideal for low-to-high temp needs, the MPTP series fits 1/8 to 3 in female NPTs, providing reliable and sustainable masking options for various industries.

Ready to Grow Without Cash Flow Constraints?

Get Net 30, 60, or 90 day terms at 0% interest on any purchase

Check Your Eligibility Now
Ready to Grow Without Cash Flow Constraints?

Product Specifications

Manufacturing Notes 0
Due to the material, these Tapered Paper Plugs may have minor dimensional variation due to changes in relative humidity.MOCAP stocks paper tapered plugs in many sizes for immediate shipment.MOCAP now offers Micro-Pack and Mini-Pack quantities when less than case quantities are what you really need.Micro-Packs are only available online.Tolerances: Part dimensions are typical from a measured lot. Individual pieces may vary.Due to the material, this product may have minor dimensional variation due to changes in relative humidity.Flange concentricity may vary.Due to papers natural structure, the product may be oblong in free state. This will generally aid in the products retention capability.
Specifications Applications
Masking
Specifications Box Quantity
2200
Specifications Color
Tan
Specifications Flange Outer Diameter Dimension F
2.701 in | 68.6 mm
Specifications Large End Outer Diameter Dimension B
2.209 in | 56.1 mm
Specifications Length Dimension E
0.701 in | 17.8 mm
Specifications Material
Paper
Specifications Micro Pack Quantity
44
Specifications Mini Pack Quantity
440
Specifications Small End Outer Diameter Dimension A
1.874 in | 47.6 mm
Specifications Standards
RoHS Compliant
Specifications Wall Thickness
0.025 in
Specifications Wall Thickness Tolerance
0.002
