Tanis® 0.125in Alumina Silicate Abrasive Nylon Twisted Brush
Tanis® 0.125in Alumina Silicate Abrasive Nylon Twisted Brush
SKU:TWI-d70f19
Achieve precise deburring with Tanis® 0.125in Abrasive Nylon Twisted Brush. Perfect for ultra-fine cleaning and maintenance.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Tanis® 0.125in Alumina Silicate Abrasive Nylon Twisted Brush
$29.99
Quantity: 1
Claim Your Seller Account
Tanis® 0.125in Alumina Silicate Abrasive Nylon Twisted Brush
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

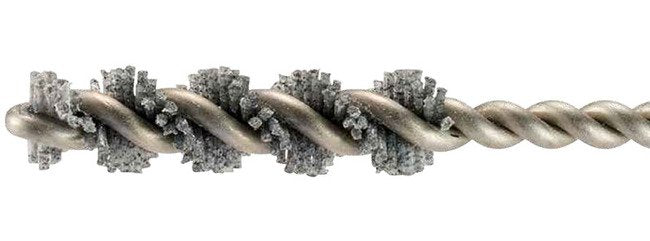

The Tanis® 0.125in Alumina Silicate Abrasive Nylon Twisted Brush is a superior tool for ultra-fine deburring of internal holes with small diameters, ensuring precise cleaning without altering dimensions or finishes. Crafted with 1000 grit for efficient performance, this single stem, single spiral brush with a continuous end provides exceptional durability and effectiveness. Ideal for power tool or manual use, this brush guarantees a side-wiping action for meticulous results.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Before Starting The Twist Brush Rotation
Secure the brush in the chuck.Ensure clockwise brush rotation-counter clockwise rotation can cause the brush to come apart and release the filament.Securely clamp the workpiece. Make sure all machine guards are in position.Align the brush with the workpiece to ensure the brush rotates on its true center line and avoid stem deflection.Guide the brush into the hole before starting the brush rotation.Always wear eye protection and protective clothing!
Note
Other sizes are available upon request.
Operating Recommendations
When mounting a twisted brush in a collet or chuck, it is recommended to minimize the overhang of the stem to under an inch. This is particularly true with power tube brushes, and it is important to avoid any load conditions and operating speeds that can cause stem deflections and destructive bending. A safe operating speed from 100-500 RPM is recommended for most twisted brushes.To reach into deeper holes we recommend the use of collet-ready shank mounted brushes or drill extension rods rather than increasing stem overhang.
Other Considerations
Wire OptionsCoatedGalvanizedStainless SteelFilament OptionsAbrasive NylonCeramiX®BrassCarbon SteelHorse HairNylonStainless SteelCrimped, Level or Color OptionsGaugeStem DiameterOtherShank TypeTubingCouplingLoopNo Loop
Specifications Brush Diameter
0.125 in
Specifications Brush Length
1 in
Specifications Brush Tip Styles
Continuous End | Cut Off End
Specifications Filament Diameter
0.008 in
Specifications Hole Diameter Decimal
0.109 in | 2.778 mm
Specifications Hole Diameter Fractional
7/64 in
Specifications Material
Alumina Silicate
Specifications Overall Length
4 in
Specifications Size
1000 grit
Specifications Stem Diameter
0.064 in
Twisted Brush Stem Construction
Single stem, single spiral tube brush with short handle and loop end.
